Place of Origin:
China
Brand Name:
HONPHO
Certification:
ISO9001:2015/GB/T 19001-2016
Model Number:
TS03
Contact Us

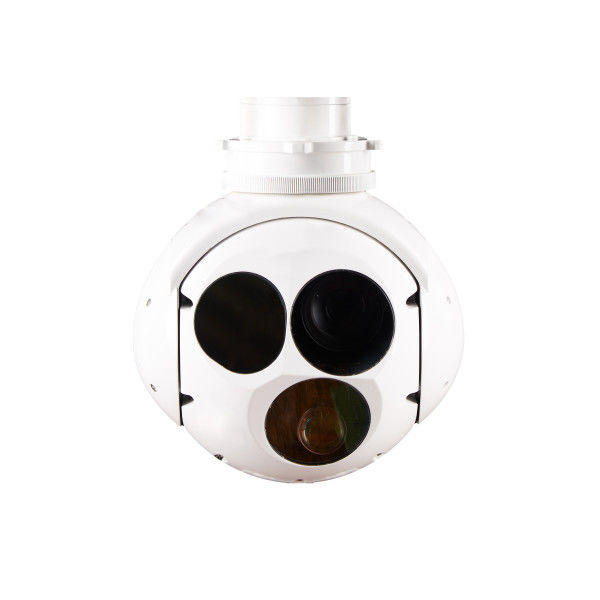

2 Axis 2.5KG Three-light Miniatured UAV Payload with Laser Irradiation Function
Introduction of 2 Axis 2.5KG Three-light Miniatured UAV Payload with Laser Irradiation Function
TS03 is two-axis gyro stabilized gimbal UAV Payload, composed of stable turret, optical load and information processing circuit. The optical load mainly consists of visible light imaging module, long wave uncooled infrared imaging module and laser rangerfinder/ illuminator. It is mainly applied to provide laser spot indication on targets for semi-active laser terminal guided weapon.Besides, It can also used in airborne imaging detection, recogniton, tracking, etc, meeting the needs of intelligence surveilance. reconnaissance and other application scenarios.
Functions
1. High precision LOS stabilization
2. Visible and infrared dual-light imaging
3. Detection and identification of ground targets
4. Search, track, lock, guide and other operating modes
5. Target locating capability
6. Laser illumination and ranging
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 | |
| Focal length | 4.3mm～129mm(30X) | |
| FOV | 63.7°～2.3° | |
| Video output | HD-SDI(1080P 30Hz) | |
| Distance | PEOPLE: Detection 6km; Recognition 2km VEHICLE: Detection 15km; Recognition 8km | |
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 35mm/F1.0 | |
| FOV | 12.4º×9.9º | |
| Distance | Target: 2.3m*2.3m Vehicle Detection: 5.7; Recognition: 1.4 |
|
| Laser rangefinder | Wavelength | 1064nm |
| Laser energy | ≥25mJ | |
| Ranging distance | 120m~5000m | |
| Ranging accuracy | ≤3m | |
| Servo System | Rotating limits | Azimuth: nX360º continuous; Pitch: -110° ~+10 º |
| Angular accuracy: | ≤2mrad | |
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz) | |
| Max.angular speed | ≥60°/s | |
| Max. angular acceleration: | ≥60°/S | |
| Interface | Communication interface |
RS422*2 (TTL optional) |
| Video output | HD-SDI*1 | |
| General | Dimension | ≤Φ172mm×200mm |
| Weight | ≤2.5kg | |
| Voltage | DC24V(20V~28V) | |
| Power consuption | Average:≤50W, Peak: ≤100W | |
| Working temperature | -20℃～60℃ | |
| Storage temperature | / | |
| Tracking Functions | Motion speed: | 30pixel/ frame |
| Target imaging contrast: | 5% | |
| Target imaging pixel(Mini) | 4x3 pixels | |
| Support | Anti -occlusion without loss of function |
Mechanical Drawing
