5kg 2 Axis Mutilple Spectral Aviation Spherical Electro Optic System

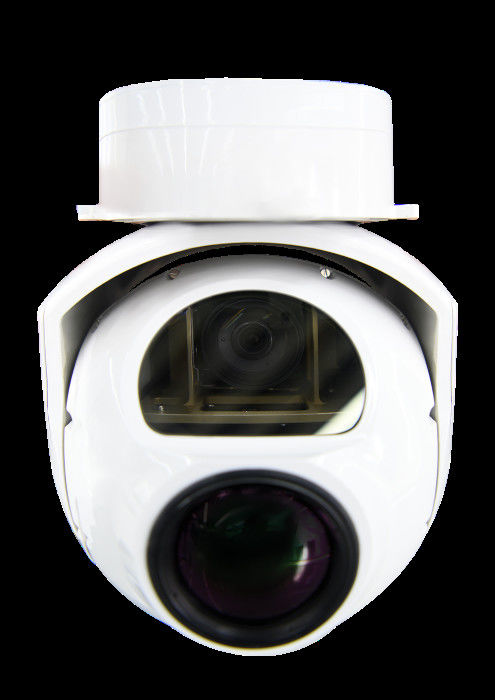

TS200B-01 gyro stabilized mutiple spectral aviation electro optic system with 30X EO sensor, cooled MWIR ,360° continuous rotation servo motor, , the total weight about 5.5kg.TS200B-01 airborne electro optical system with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion
8. Self-inspection and fault diagnosis
9.Picture in picture
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | MWIR(cooled) |
| Wavelength | 3~5μm | |
| Resolution | 640x512 | |
| Pixel | 15um | |
| NETD | 25mk | |
| Focus length | 20-275mm/F5.5,continuous zoom | |
| FOV | 28º×22.4º～2.0º×1.6º | |
| Distance | People: detection distance 4km, identification distance 1km; Vehicle: Detection distance 15km, identification distance 6km |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥60°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HDSDIx1 | ||||
Mechanical Drawing
