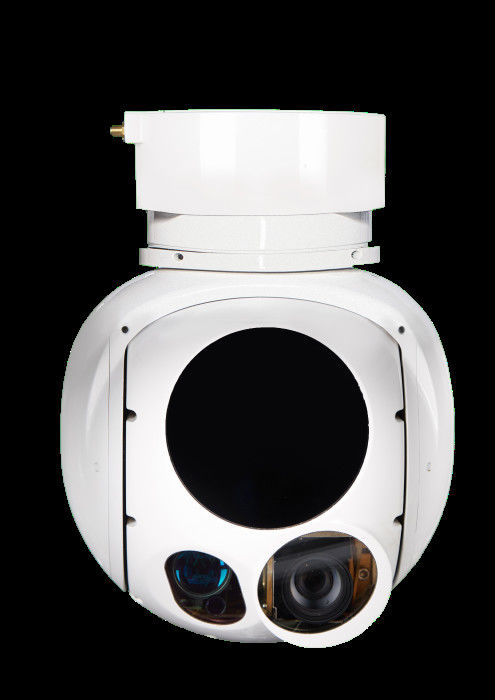

10kg 2 Axis 30X EO sensor and MWIR Mutilple Spectral Aviation Spherical Electro Optic System
TS240C-02 is gyro stabilized electro optic system with 30X EO sensor, cooled LWIR sensor and 5 km laser rangefinder,360° continuous rotation servo motor, , the total weight about 10.5kg.TS240C-02 airborne electro optical system with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging and laser irradiation
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 | |
| Focal length | 4.3mm～129mm(30X) | |
| FOV | 63.7°～2.3° | |
| Video output | HD-SDI(1080P 30Hz) | |
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | |
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 40mk | |
| Focus length | 22~100mm/F0.82~1.0 zoom | |
| FOV | 19°~15.2°~4.4°x3.5° | |
| Distance | PEOPLE:Detection 2km;Recognition 1km VEHICLE:Detection 9km;Recognition 3km | |
| Laser rangefinder | Wavelength | 1525nm |
| Laser energy | ||
| Ranging distance | 50m~5000m | |
| Ranging accuracy | ±5m | |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10º |
| Angular accuracy: | ≤2mrad | |
| Stablization accuracy | ≤100μrad(1σ) | |
| Max.angular speed | ≥60°/s | |
| Max. angular acceleration: | ≥90°/S | |
| Interface | Communication interface |
RS422*2 (TTL optional/transfer 232) |
| Video output | HD-SDI*1 |
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
