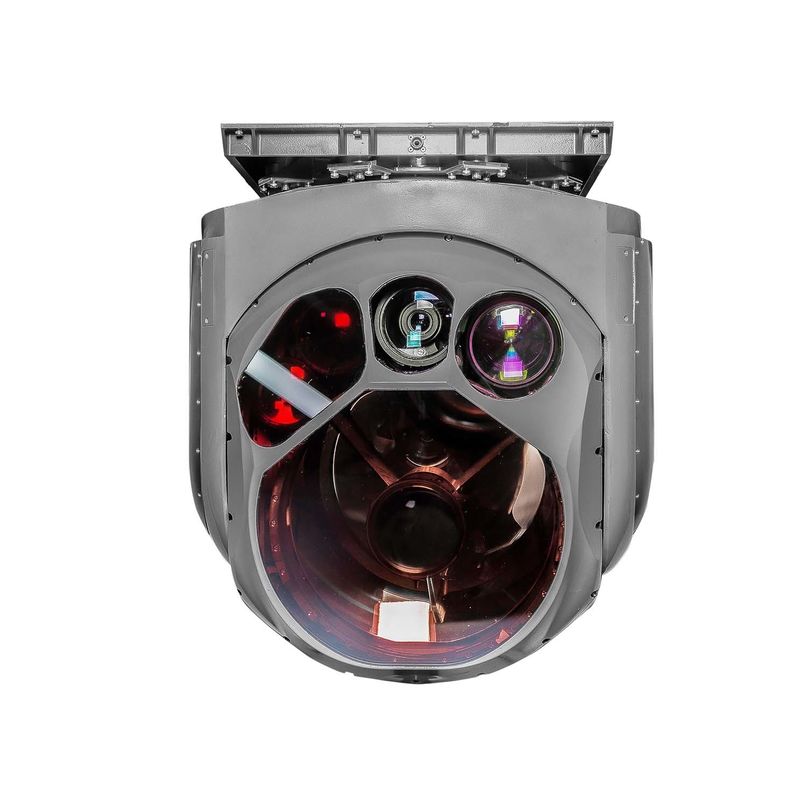

80kg 2 Axis 4frame Three Infrared sensor Mutilple Spectral Electro Optic System
TS80 is gyro stabilized electro optic system with EO sensor, three IR senaor(cooled MWIR sensor ,SWIR and balck and whiteNIR) and 30km laser rangefinder and over 10km laser irradiation distance,360° continuous rotation servo motor, , the total weight about 80kg.TS80 airborne electro optical system with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging and laser irradiation
8. Support manual tracking, geographic tracking, automatic tracking and search tracking of the target
9. Support target laser ranging,provide the real-time angular of line of light,angular speed and range information to the mission system
10. Provide laser instructions for laser-guied weapon and support user-defined laser precise frequency codes
Specifications
| EO +A3:E35sensor | Wavelength | 0.486μm～0.656μm | ||
| Resolution | 1080p | |||
| Focal length | ||||
| FOV | 30.6º×17.2º～1.53º×0.86 | |||
| Video output | ||||
| Distance | Detection distance: ≥12km , Identification distance: ≥7km | |||
| IR sensor | IR Type | MWIR | SWIR | NIR(Black&white) |
| Wavelength | 3.7μm～4.8μm | 0.95μm～1.7μm | 0.65μm～0.9μm | |
| Resolution | 640×512 | 640×512 | 1920×1080 | |
| Guiding FOV | 30°×24 | *** | ||
| Large FOV | 7.44°×6° | 7.44°×6° | ||
| Middle FOV | 1.86°×1.5° | 1.86°×1.5 | ||
| Small FOV | 0.47°×0.37° | 0.45°×0.36° | 0.5 º×0.5 (30.6º×17.2º～1.53º×0.86º continue zoom) | |
| Distance | Detection distance: ≥30km; Identification distance: ≥20km |
Detection distance: ≥30km; Identification distance: ≥20km |
Detection distance: ≥45km; Identification distance: ≥30km |
|
| Laser rangefinder | Wavelength | 1064nm | ||
| Laser energy | ≥80mJ | |||
| Ranging distance | 300m～30km | |||
| Ranging accuracy | ＜±2m | |||
| laser designator | ≥10Km | |||
| Laser irradiation code | 8 groups(Adjust and expand optional) | |||
| Light Spot searching and tracking | Wavelength | 1064nm | ||
| Detectior | Four-quadrant | |||
| FOV | ≥4 | |||
| Searching and tracking distance | ≥10km | |||
| accuracy | ≤1mrad | |||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -120° ~+45º | ||
| Angular accuracy | ||||
| Stablization accuracy | Line of sight stabilization accuracy≤10μrad (1σ) | |||
| Max.angular speed | ≥70°/s | |||
| Geo-positioning coordinate accuracy | ≤20m/10km | |||
| Max. angular acceleration: | ≥60°/S | |||
| Interface | Control interface |
1*RS422(TTL optional) | ||
| signal and image output | 4*HDSDI | |||
Mechanical Drawing
