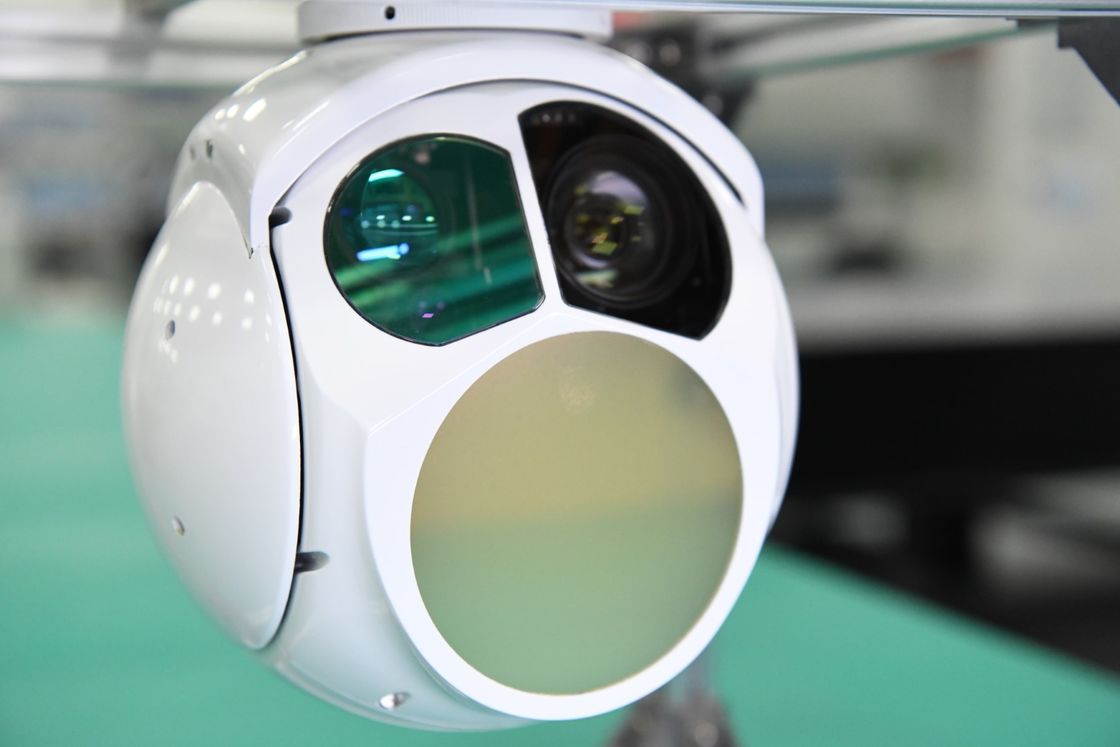

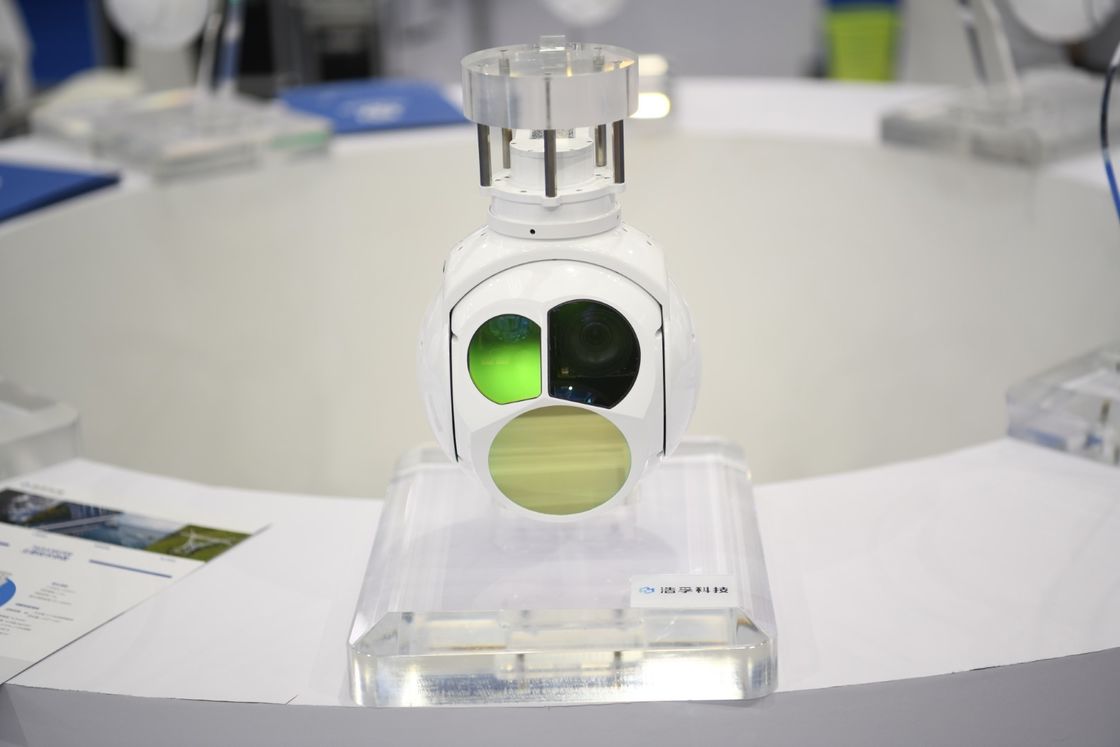

170mm Class Airborne Electro Optical Survelliance System With EO IR And LRF
Diameter 170mm, small size and light weight 2 axis high stabilization accuracy TS170C-02 airborne electro optical systemWith mutiple AI functions, auto-tracking / terget tracking functions,people, vehicle and ship detection and recoginization functions, target missed and recapture functions.
TS170C-02 offers day and night operation for observation combined with precise target distance information using the laser rangefinder. This enables troops on the battlefield to have a distinct advantage by clearly identifying a target in order to conduct coordinated ground and air strikes
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 40mk | |
| Focus length | 63mm/F1.0 | |
| FOV | 6.9º×5.5º | |
| Distance | PEOPLE:Detection 1.8km; Recognition 0.4km VEHICLE:Detection 10km; Recognition 2.5km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HDSDI | ||||
Mechanical Drawing
