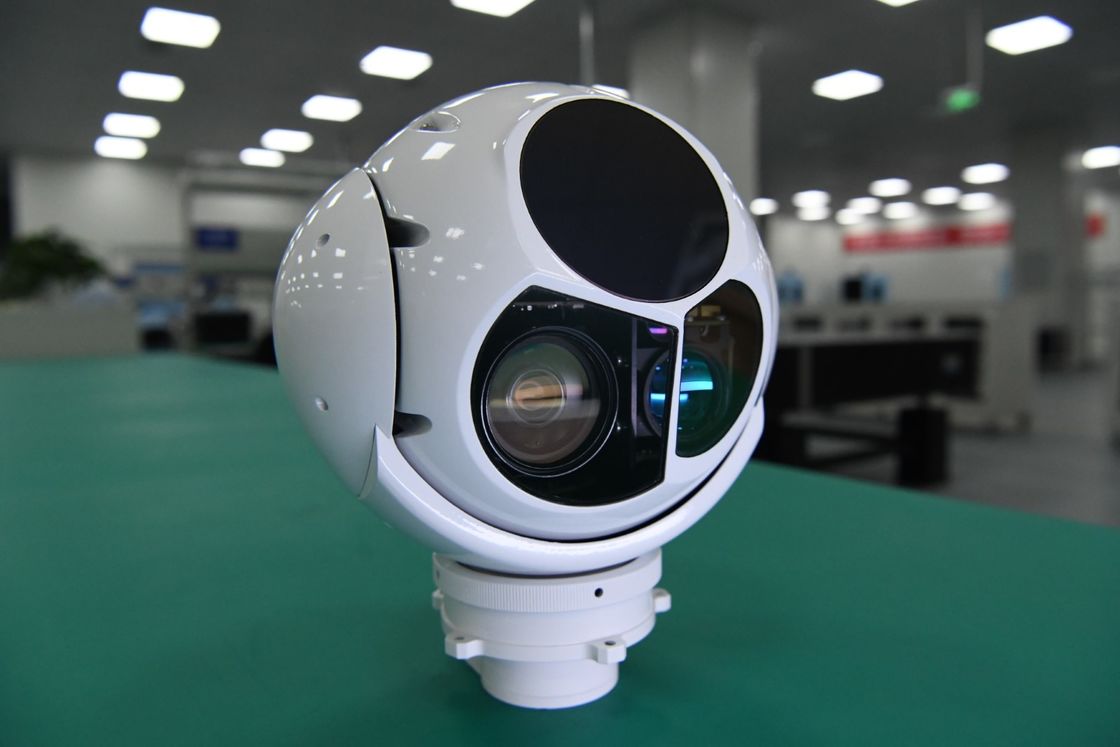

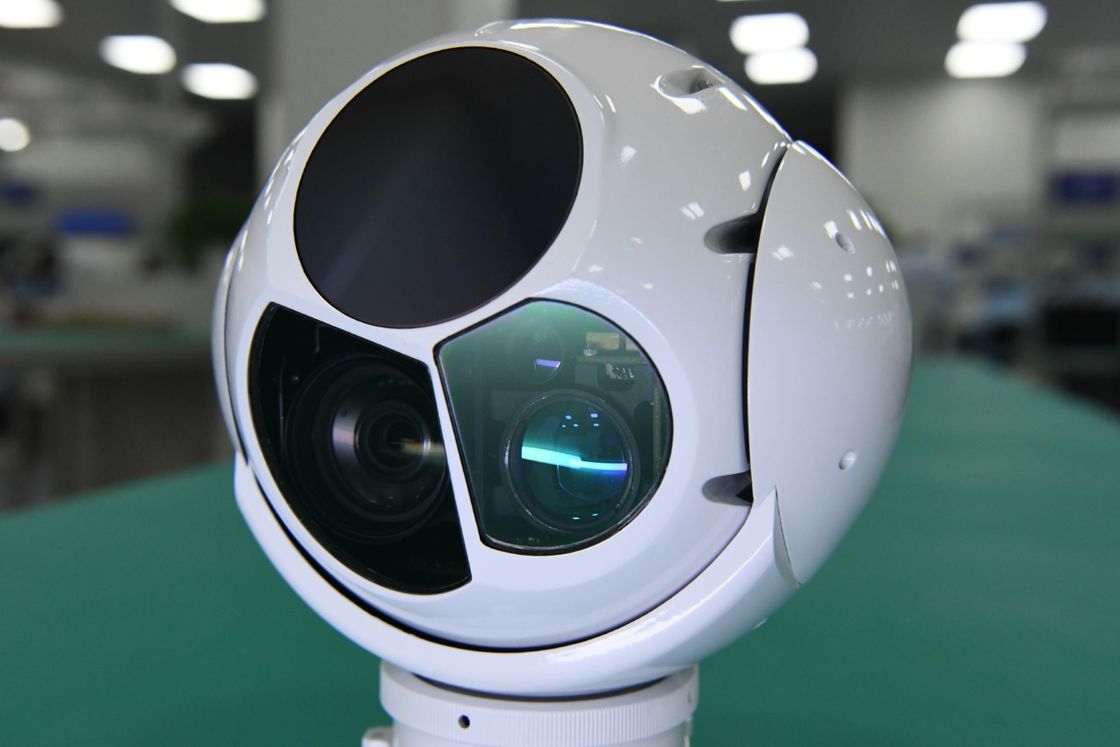

Multi-Sensor 2-Axis Optical System
TS02-N is a multi-sensor 2-axis optical system designed for moving platforms exposed to unwanted vibrations and/or to operate in a harsh environment. Composed of a high zoom day/low light FULL HD EO camera, a high-resolution thermal camera and a precise laser rangefinder, equipped with the fastest and most power-efficient embedded AI computer on the market.The gimbal can provide perfect aerial and ground vehicle optical stabilized image results.Specialized for surveillance, area control, search and rescue missions in harsh environment.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 50mm/F1.0 | |
| FOV | 8.8º×7.0º | |
| Distance | PEOPLE:Detection 1.4km; Recognition 0.35km VEHICLE:Detection 8.4km; Recognition 2.1km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL optional) | |||
| Video output | 100mb Ethernet | ||||
