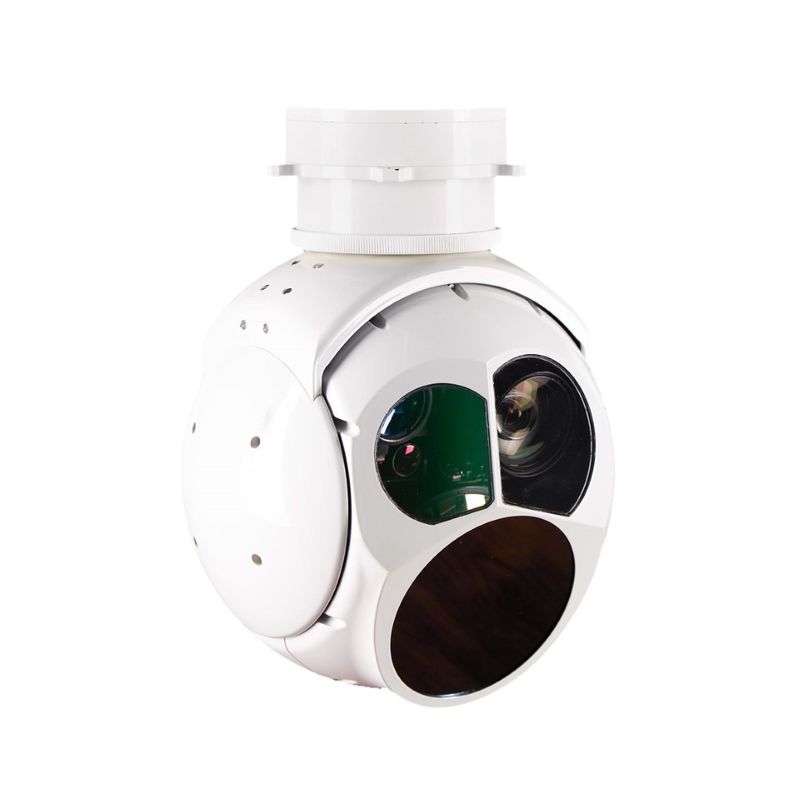

UAV Gimbal Camera with integrated undersea surveillance system
TS02A is update version based TS02 is gyro stabilized UAV payload with 30X EO sensor , uncooled LWIR and laser rangefinder,360° continuous rotation servo motor, support search, tracking, lock, guiding, etc working ways.The 4km laser ranging feature enables you to precisely measure the distance to your target, facilitating target recognition and control. With character overlay, custom and display functions,helps you detect and identify targets quickly while ensuring your safety.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 17um | |
| NETD | 60mk | |
| Focus length | 42mm/F1.0 | |
| FOV | 14.6º×11.7º | |
| Distance | PEOPLE:Detection 0.8km; Recognition 0.2km VEHICLE:Detection 5km; Recognition 1.1km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL optional) | |||
| Video output | HDSDIx1 | ||||
Mechanical Drawing
