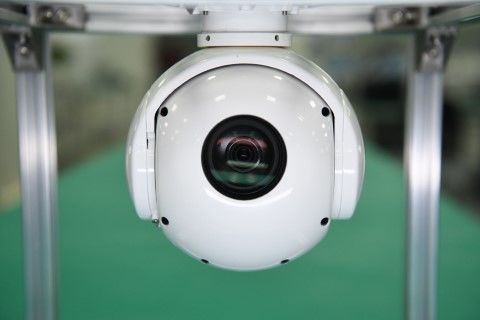

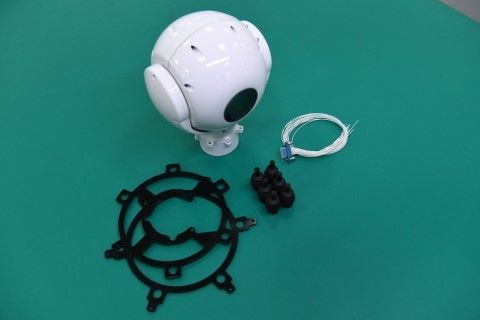

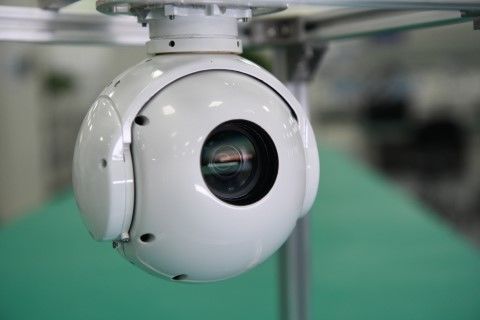

Light Weight High Resolution 30X Eots System Airborne Electro Optical Pod
TS120A-01 with gyro stabilized, the stabilization accuracy less than 100μrad, 360º continuous Pan, Pitch: -110° ~+10 º, Built-in 30X HD optica Sony zoom camera, mainly used in airborne imaging detection, recognition, tracking, etc, meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
TS120A-01 UAV gimbal camere with light weight and good targeting tracking functions.
Functions
1. Clear and visible video and image for effective target area detection.
2. High-precision visual axis stabilization for steady imaging in challenging environments.
3. Enhanced surveillance capabilities with ground target detection and identification.
4. Versatile working modes: search, track, lock, and guide.
5. Advanced features: character overlay, custom settings, and display functions.
6. Self-check and fault diagnosis for reliable performance.
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance |
PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km |
||||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1 | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
