Place of Origin:
China
Brand Name:
HONPHO
Certification:
ISO9001:2015/GB/T 19001-2016
Model Number:
TS170C-02
Contact Us

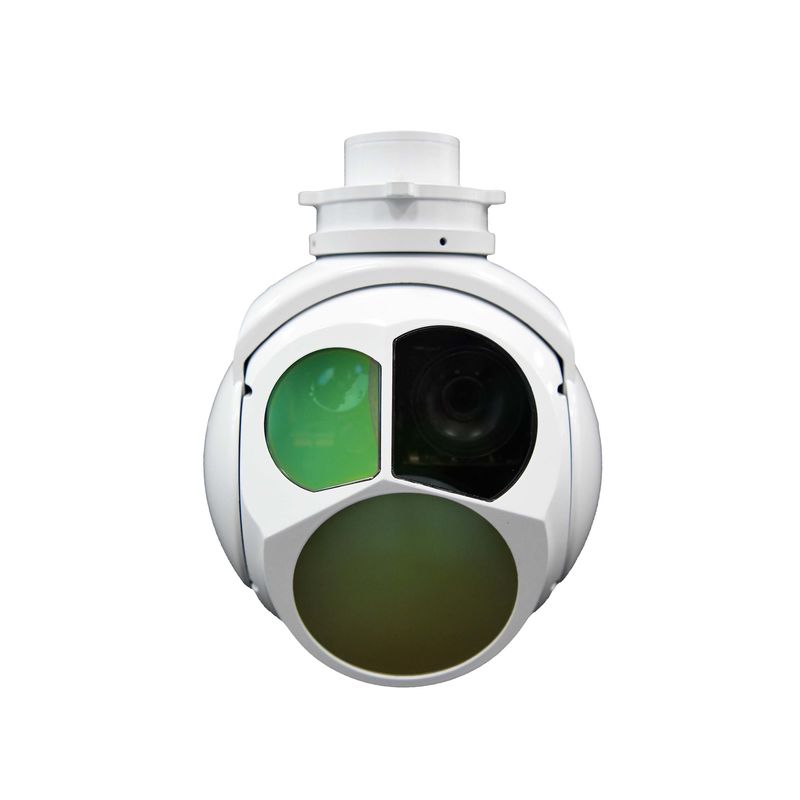

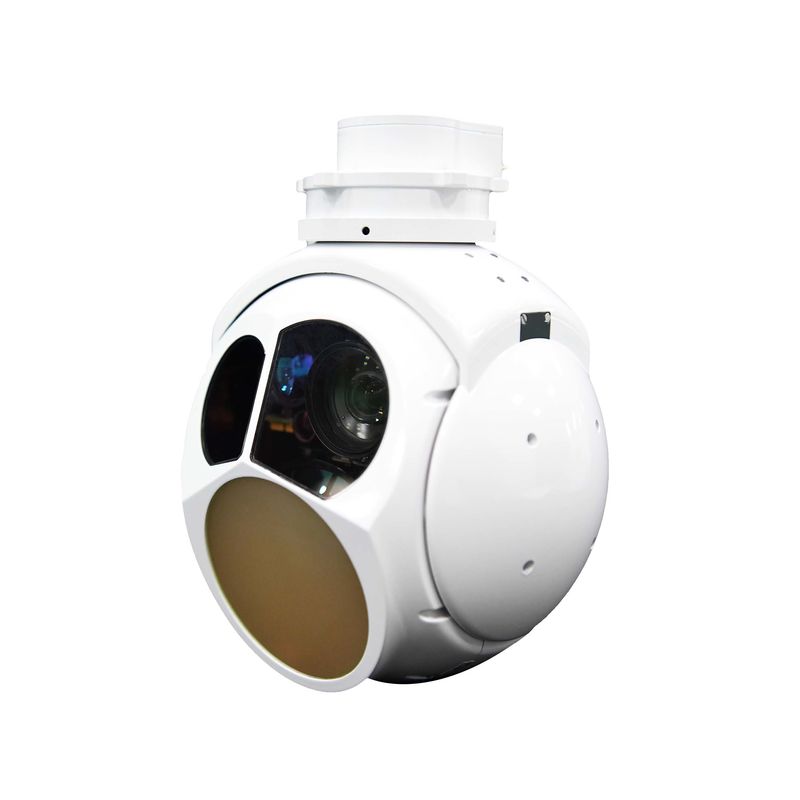

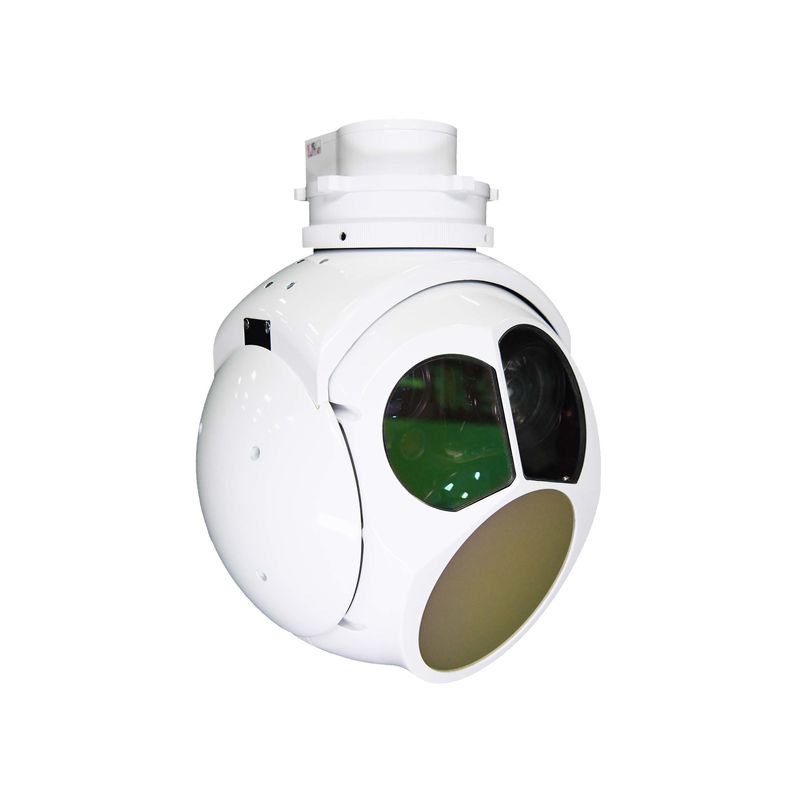

30X Visible Light Optical Surveillance System with LWIR Thermal Camera
The type of TS170C-02 has three lights include EO sensor, LWIR and laser illuminators. With those subassemblies, our camera can work perfectly for the need of surveillance. Also, the electrically conductive slip rings ensures the stabilization of the process of imaging. High revolution images can be guaranteed.
Functions
1. Provide infrared video and image for detection area
2. High precision visual axis stabilization
3. Capability of detection and recognition for ground target
4. Support searching, tracking, locking, guiding, etc. multiple working modes
5. Support characters overlay, custom and display
6. Self - check and fault diagnosis
7. Target postioning and laser ranging
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 40mk | |
| Focus length | 63mm/F1.0 | |
| FOV | 6.9º×5.5º | |
| Distance | PEOPLE:Detection 1.8km; Recognition 0.4km VEHICLE:Detection 10km; Recognition 2.5km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HDSDI | ||||
Mechanical Drawing
Operation Principle of Pulsed Laser Ranging
The core principle is to hit a laser beam with a very short time to the detection object, and the distance from the detector to the measured object is deduced inversely by directly measuring the flight time of the laser emission, hitting the detected object and then returning to the detector. This ranging method is similar to traditional microwave radar ranging, the return time delay corresponds to the distance traveled is twice the target distance.
Since light travels very fast, this solution requires a very fine clock circuit (usually ps level, 1 ps=10^-3 ns) and a laser transmitter circuit with a very narrow pulse width (usually ns level), so it is difficult to develop and has a high threshold, but the general use of the TOF principle of LIDAR can usually reach the 100-meter level of detection range.Pulsed lasers are characterized by high peak power, which enables them to travel long distances in space, so pulsed laser ranging can be used to measure very distant targets.
