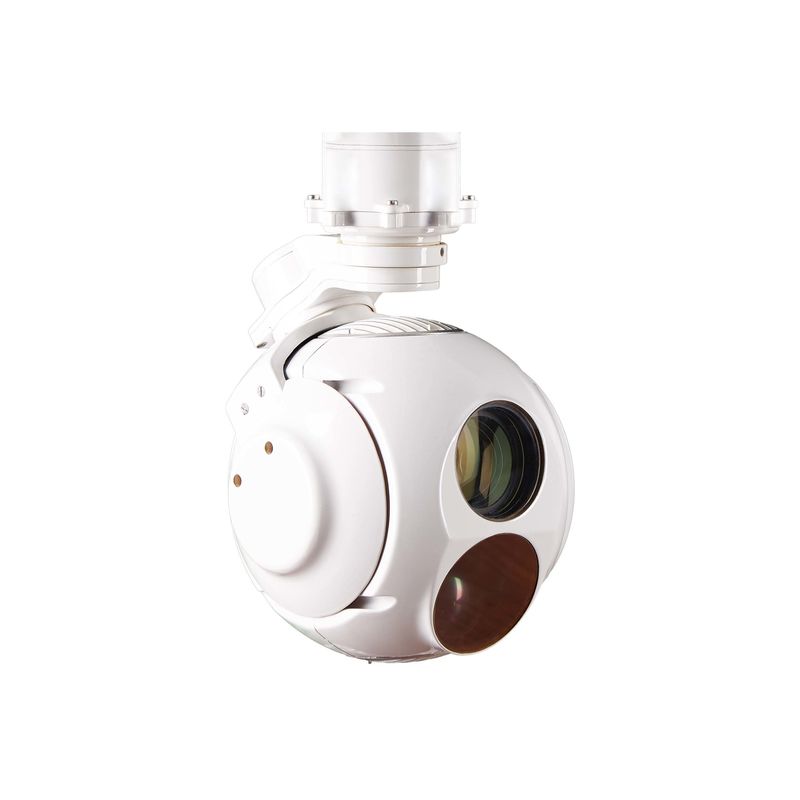

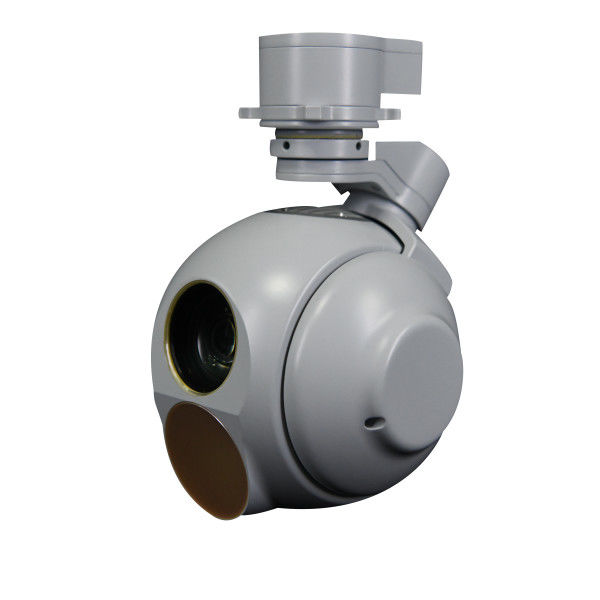

30x Night Vision EO Sensor Thermal Electro Optical UAV Gimbal Camera Drone use
TS120BT-03 is 3axis 30x Night Vision EO Sensor Thermal Electro Optical UAV Gimbal Camera, with these sensors, it provides image and vedio under auto-tracking. Click on your target and the gimbal will follow target automatically. The high resolution of EO & IR thermal camera ensures the the target tracking function more stable.
Functions
1. Provide IR image for detection area
2. High precision visual axis stabilization
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. Support character overlay, custom and display
6. With self - check and fault diagnosis
7. support target postion and laser ranging
Specifications
| IR sensor | Wavelength | 8μm～14μm | |||
| Resolution | 640x512 | ||||
| Focal length | 25mm/F1.0 | ||||
| FOV | 17.4°～14° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 0.7km;Recognition 0.2km VEHICLE:Detection 4.2km;Recognition 1km | ||||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
