Place of Origin:
China
Brand Name:
HONPHO
Certification:
ISO9001:2015/GB/T 19001-2016
Model Number:
TS02-170-N
Contact Us

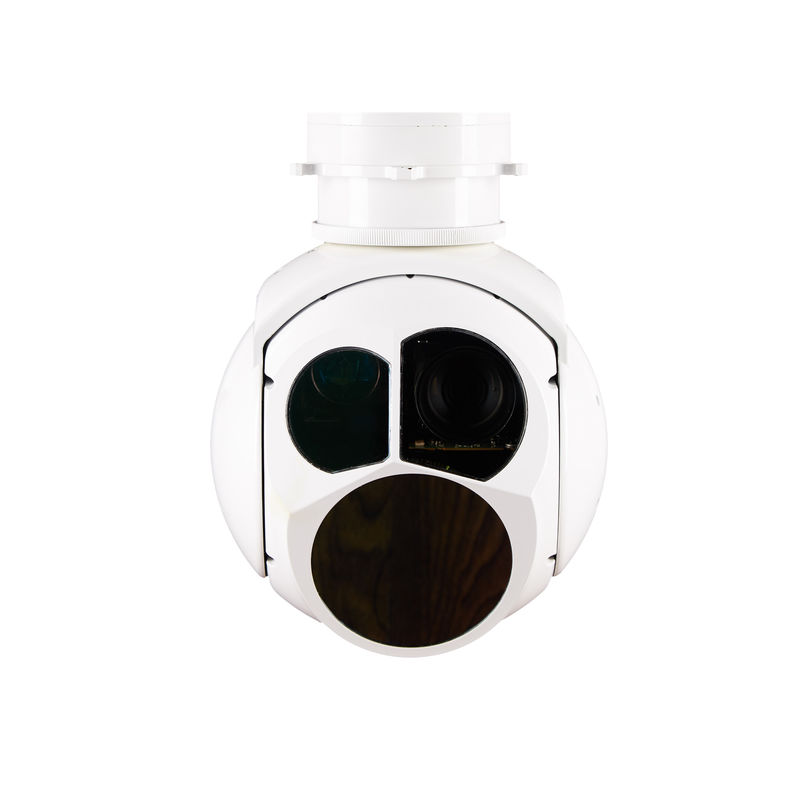

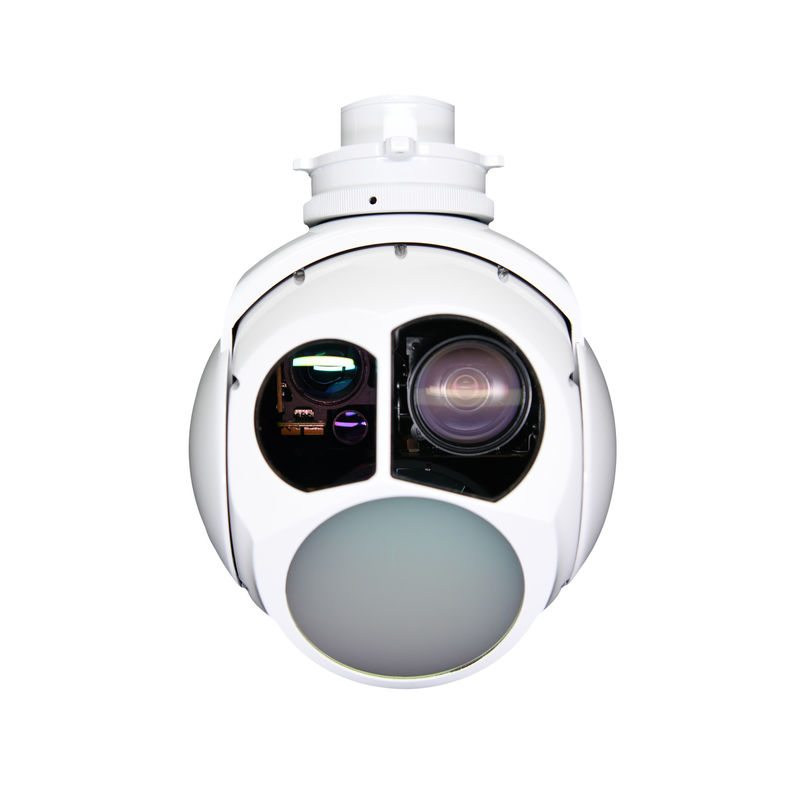

2 Axis 2kg Version Electro Optical Surveillance System UAV Gimbal Camera
Being a network version gyro stabilized electro optical tracking system, TS02-170-N has 1 channels RS422 and 1channel 100mb ethernet video output,built in 30X EO sensor, with resolution of 640x512 uncooled LWIR and 4km laser rangefinder,360° continuous rotation servo motor, , the total weight about 2.4kg.TS02-170-N airborne electro optical system
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display
6. With self - check and fault diagnosis
7. Support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 40mk | |
| Focus length | 60mm/F1.0 | |
| FOV | 6.9º×5.5º | |
| Distance | PEOPLE:Detection 1.8km; Recognition 0.4km VEHICLE:Detection 10km; Recognition 2.5km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | 100Mb Ethernet output | ||||
Mechanical Drawing
Cautions
1)Dont touch the detector window with your hands or other objects
2)Don't plug or remove the connector without disconnecting the power supply
3)Connect power supplies and signals according to the interface definition to prevent device damage
4)Don't disassemble the equipment. If there is any fault, please contact HONPHO forprofessional maintenance.
