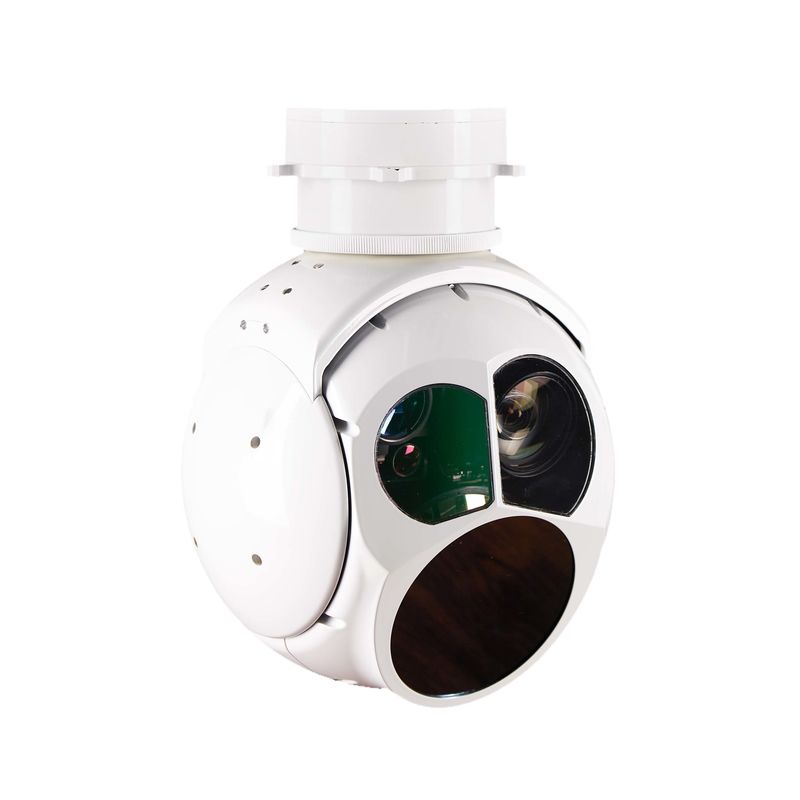

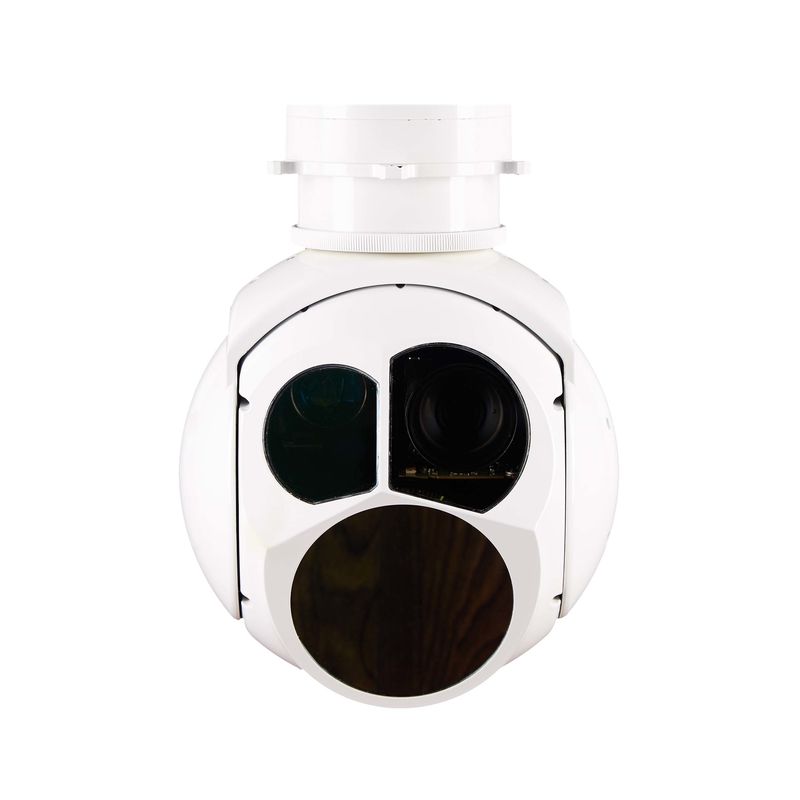

Honpho TS02A 2Axies EO Sensor Electro Optical Pod System For Tracking And Surveillance

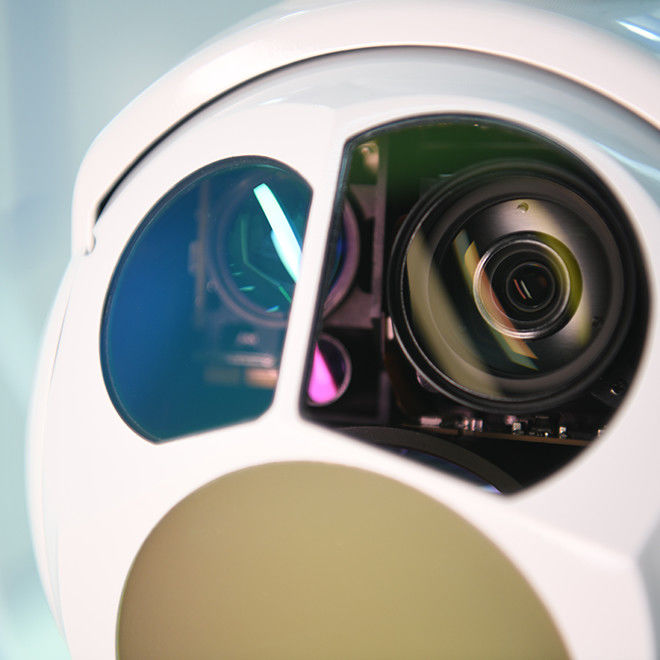

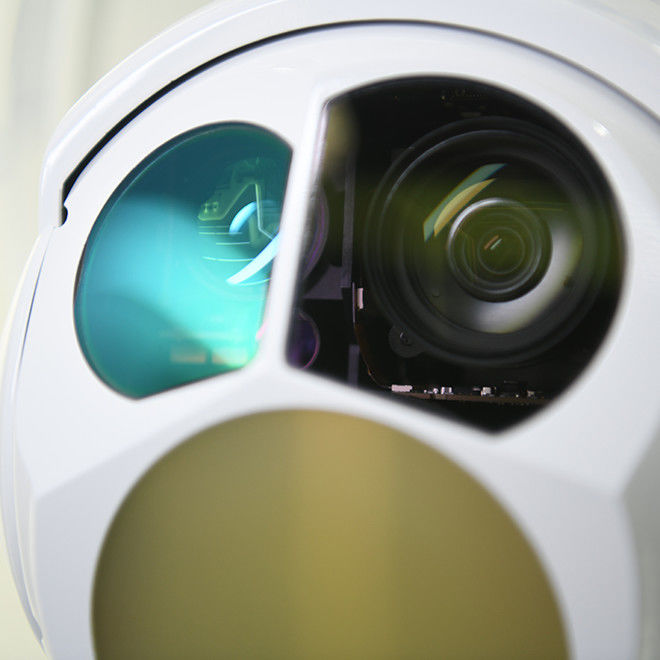

The TS02A UAV Payload Electro Optic System is two-axis gyro stabilized gimbal UAV Payload. The Electro Optic System mainly consists of visible light imaging module, long wave uncooled infrared imaging module and laser rangerfinder/ illuminator. It has the ability to detect and identify ground targets.Besides, It is helpful with visible light and infrared dual-light imaging function.
Functions
1. High precision LOS stabilization
2. Visible and infrared dual-light imaging
3. Detection and identification of ground targets
4. Search, track, lock, guide and other operating modes
5. Target locating capability
6. Laser illumination and ranging
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 | |
| Focal length | 4.3mm～129mm(30X) | |
| FOV | 63.7°～2.3° | |
| Video output | HD-SDI(1080P 30Hz) | |
| Distance |
PEOPLE: Detection 6km Recognition 2km VEHICLE: Detection 15km Recognition 8km |
|
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 40mk | |
| Focus length | 63mm/F0.83 | |
| FOV | 6.9º×5.5º | |
| Distance |
People: Detection 1.8km Recognition 0.4km Vehicle Recognition 2.5km |
|
| Laser rangefinder | Wavelength | 1535nm |
| Laser energy | ≥25mJ | |
| Ranging distance | 50m~4000m | |
| Ranging accuracy | ≤2m | |
| Servo System | Rotating limits |
Azimuth: nX360º continuous; Pitch: -110° ~+10 º |
| Angular accuracy: | ≤2mrad | |
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz) | |
| Max.angular speed | ≥50°/s | |
| Max. angular acceleration: | ≥90°/s² | |
| Interface | Communication interface |
1*RS422 (TTL optional) |
| Video output | HD-SDI*1 | |
| General | Dimension | ≤Φ170mm×230mm |
| Weight | ≤2.5kg | |
| Voltage | DC24V | |
| Power consuption | Average:≤20W, Peak: ≤50W | |
| Working temperature | -20℃～60℃ | |
| Storage temperature | / | |
| Tracking Functions | Motion speed: | 30pixel/ frame |
| Target imaging contrast: | 8% | |
| Target imaging pixel(Mini) | 4x3 pixels | |
| Support | Anti -occlusion without loss of function |
