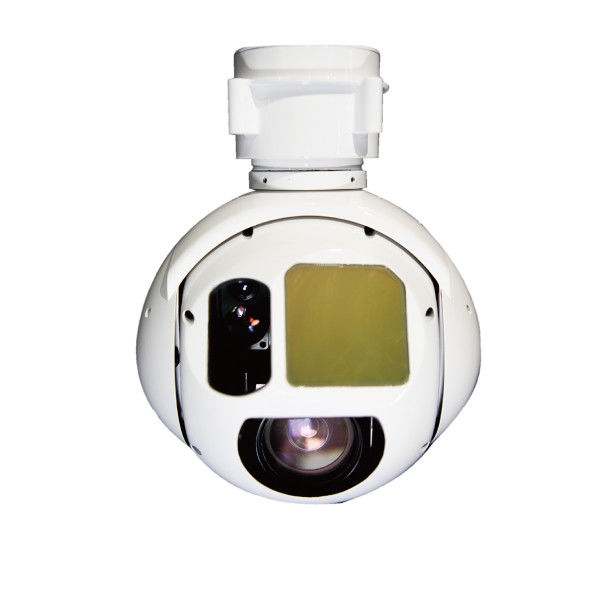

Light Weight Two Axis EO Sensor And Infrared Sensor Electro Optical Tracking System With Laser Rangefinder
TS01D is two- axis gyro stabilized multiple sensor electro optical tracking system, 360° continuous rotation servo motor, Built-in 30X HD zoom camera , laser un-cooled longwave infrared sensor and laser rangefinder, mainly used in airborne imaging detection, recognitiontracking, etc, meet the needs of mapping, surveillance, laser ranging application scenarios.
EOsensor: PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km
IR sensor: PEOPLE:Detection 0,8km;Recognition 0.2km VEHICLE:Detection 5km;Recognition 1.2km
Functions
1. Provide the visible video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 50mm/F1.0 | |
| FOV | 8.7º×7º | |
| Distance | PEOPLE:Detection 0.8km; Recognition 0.2km VEHICLE:Detection 5km; Recognition 1.2km |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Laser rangefinder | Wavelength | 1535nm |
| Performance | 3km | |
| Ranging distance | 50~3000m | |
| Ranging accuracy | ±1 |
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL Optional) | |||
| Video output | HD-SDI x1 | ||||
