905nm 1000m Two Axis Electro Optic Drone System EO Sensor

TWO-AXIS Gyro Stabilized gimbal

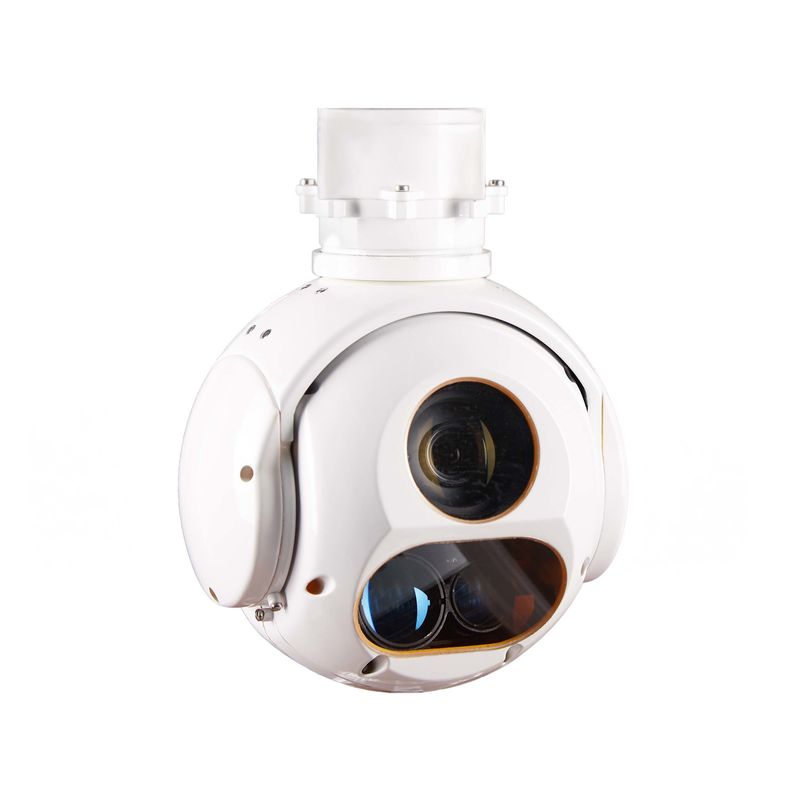

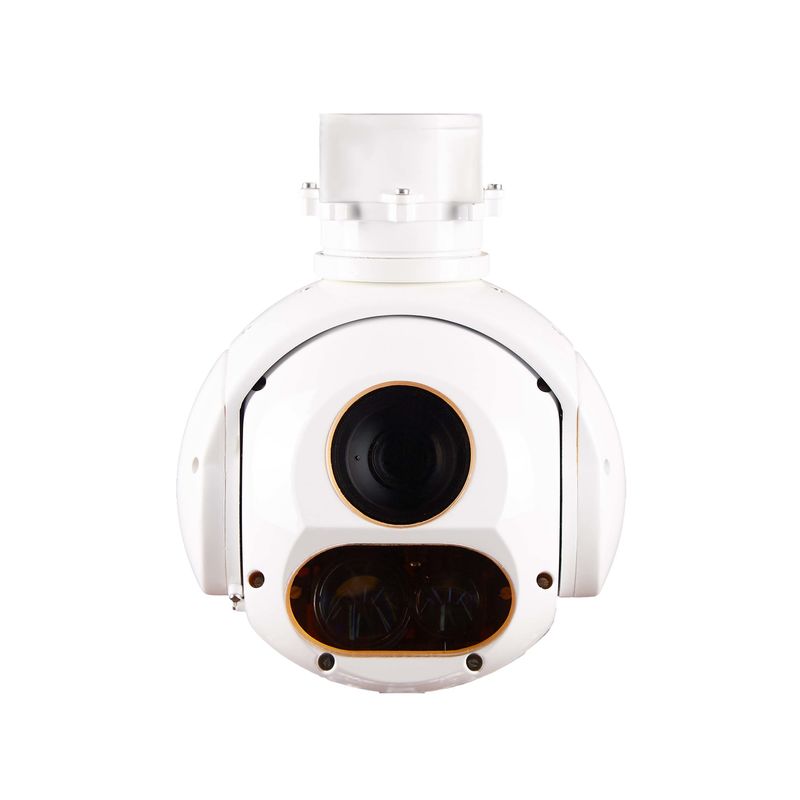

The TS01A photoelectric pod adopts a two-axis gyro stabilized platform, is equipped with a conductive slip ring to realize 360 continuous rotation, and has a built-in 30-fold high-definition visible light camera and a laser rangefinder.
It is mainly used for airborne ground imaging detection, identification, tracking, ranging and positioning, and meets the needs of aerial mapping, monitoring and reconnaissance.


 function

a) Providing a visible video image of the detection area;
b) It has high-precision visual axis stabilization function;
c) Have the ability to detect and identify ground targets;
d) With search, tracking, locking, guiding and other working modes;
e) With the function of character superposition customization and display;
f) With the function of target location;
g) With laser ranging function;
h) It has the functions of self-check and fault diagnosis.

 Visible zoom camera

a) Working band: 0.4μm~0.9μm;
B) Number of detector pixels: 1920×1080;
c) Focal length: 4.3mm~129mm, optical 30 times continuous zoom;
d) Continuous zoom horizontal field of view: 63.7 ~ 1.1;
e) Video output: HD-SDI, 1080P, 30Hz.

laser ranging

a) Working wavelength: 905nm;
b) Ranging accuracy: 3m;
c) Ranging frequency: 1Hz;
d) Laser ranging distance: 3 ~ 1000 m.

Servo performance index

a) Rotary range
Azimuth axis: n×360° continuous rotation.
Pitch axis:-110 ~+10 (0 in the horizontal direction and positive in the upward direction)
b) Angle measurement accuracy: ≤2mrad;
c) Stability accuracy: ≤ 100 rad (1 σ) (2/1 Hz, 1/2 Hz swing);
d) Maximum angular velocity: ≥ 50/s;
e) Maximum angular acceleration: ≥ 90/s2.

Tracking performance index

a) Pixel deviation update rate: 50hz;
b) Tracking speed: 30 pixels/frame;
c) Minimum target contrast: 8%;
d) Minimum target imaging size: 4×3 pixels;
e) In the case of rolling, rapid reduction or enlargement of target imaging, it has the ability to track without slipping or losing;
f) It has the ability to automatically recapture the target after the short-term occlusion such as clouds and ground scenes is eliminated.

electrical specification

a) Communication interface: 1 RS422;
b) Video interface: 1 channel HD-SDI.

Power supply characteristics

a) Nominal DC voltage: 12V;
b) Normal power supply voltage range: 10V~14V;
c) Average power consumption: ≤15W;
d) Peak power consumption: ≤30W.

Interface definition

3.1 Mechanical interface
See for mechanical installation interface.picture.


Figure 1 Mechanical interface

3.2 Electrical interface
There are two kinds of connectors for photoelectric ball, rectangular connector is used for power supply and communication, and RF connector is used for video transmission. See for interface definition.table 1,Table 2

Table 1 Definition of Rectangular Connector (J30-15ZK)

Table 2 Video Interface (MCX-KYH81)
