Three Axis LWIR Electro Optical Infrared Tracking System EO/IR Camera

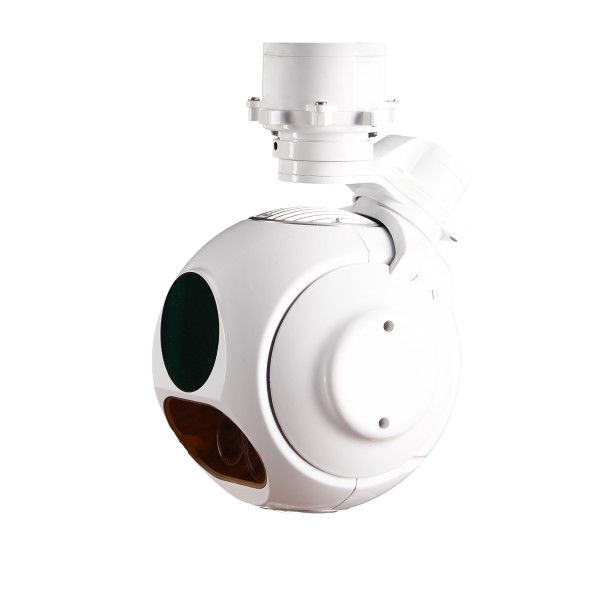

TS01BT is three- axis gyro stabilized gimbal electro optical infrared system, 360° continuous rotation servo motor, Built-in uncooled longwave infrared module (LWIR)and 1km laser rangefinder, the total weight about 780g.TS01BT airborne electro optical pod with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the visible video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
Specifications
| IR sensor | Wavelength | 8μm～14μm | |||
| Resolution | 640x512 | ||||
| Focal length | 25mm/F1.0 | ||||
| FOV | 17.4°～14° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 0.7km;Recognition 0.2km VEHICLE:Detection 4.2km;Recognition 1km | ||||
| Laser rangefinder | Wavelength | 905nm |
| Performance | 3m~1km | |
| Ranging distance | 3~1000m | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
