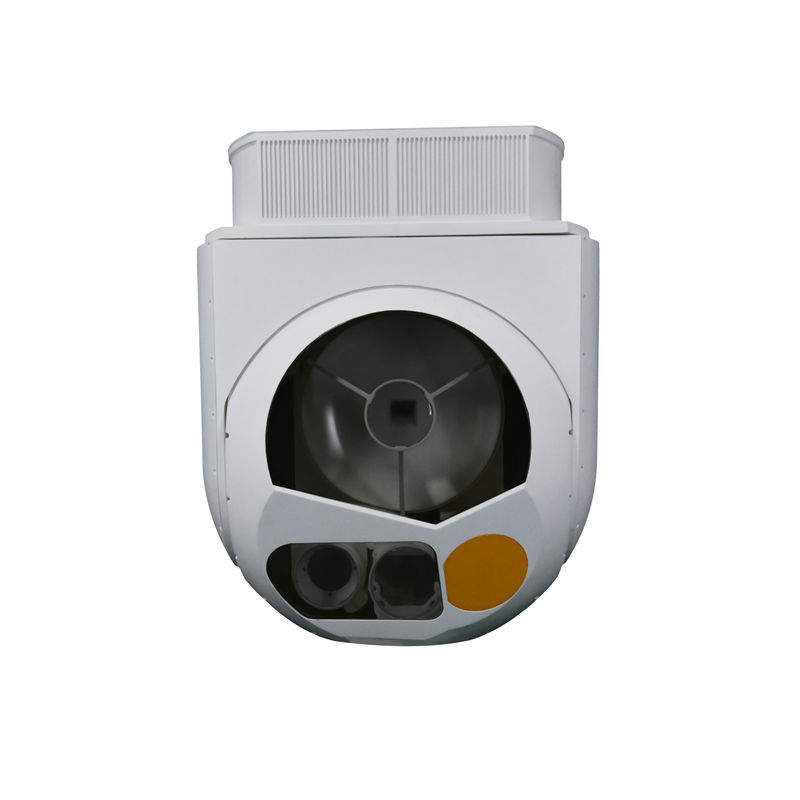

60kg 2 Axis 4frame 30X EO Sensor And Three Infrared Mutilple Spectral Electro Optical Infrared System
TS60 is gyro stabilized electro optic system with 30X EO sensor, three IR senaor(cooled MWIR sensor ,SWIR and balck and whiteNIR) and 30km laser rangefinder and over 16km laser irradiation distance,360° continuous rotation servo motor, , the total weight about 60kg.TS60 airborne electro optical system with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging and laser irradiation
8. Support manual tracking, geographic tracking, automatic tracking and search tracking of the target
9. Support target laser ranging,provide the real-time angular of line of light,angular speed and range information to the mission system
10. Provide laser instructions for laser-guied weapon and support user-defined laser precise frequency codes
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | ||
| Resolution | 1920×1080 | |||
| Focal length | ||||
| FOV | 24°×13.5°~1.6°×0. | |||
| Video output | ||||
| Distance | Detection distance: ≥24km; Identification distance: ≥19km |
|||
| IR sensor | IR Type | MWIR | SWIR | NIR(Black&white) |
| Wavelength | 3μm～5μm | 1μm～1.7μm | 0.7μm～0.9μm | |
| Resolution | 1280×1024 | 640×512 | 1920×1080 | |
| Pixel | ||||
| NETD | ||||
| Focus length | ||||
| FOV | 24°×19.0°~3.6°×2.8°,1.2°×9.6° | 27º×21.6º~2°×1.6°,0.5°×0.4° | 1.2°×0.7° | |
| Distance | Detection distance: ≥22km; Identification distance: ≥19km |
|||
| Laser rangefinder | Wavelength | 1.064um | ||
| Laser energy | ≥90mJ | |||
| Ranging distance | ≥30Km | |||
| Ranging accuracy | ＜±3m | |||
| Irradiation distance | ≥16Km | |||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+20º | ||
| Angular accuracy: | ||||
| Stablization accuracy | Line of sight stabilization accuracy≤35μrad (1σ) | |||
| Max.angular speed | ≥70°/s | |||
| Max. angular acceleration: | ≥185°/S | |||
| Interface | Control interface |
J599 | ||
| signal and image output | optical fiber | |||
| Power | J599 | |||
Mechanical Drawing
