30X 3km LRF 360°Degree Dual Camera with 3km LRF

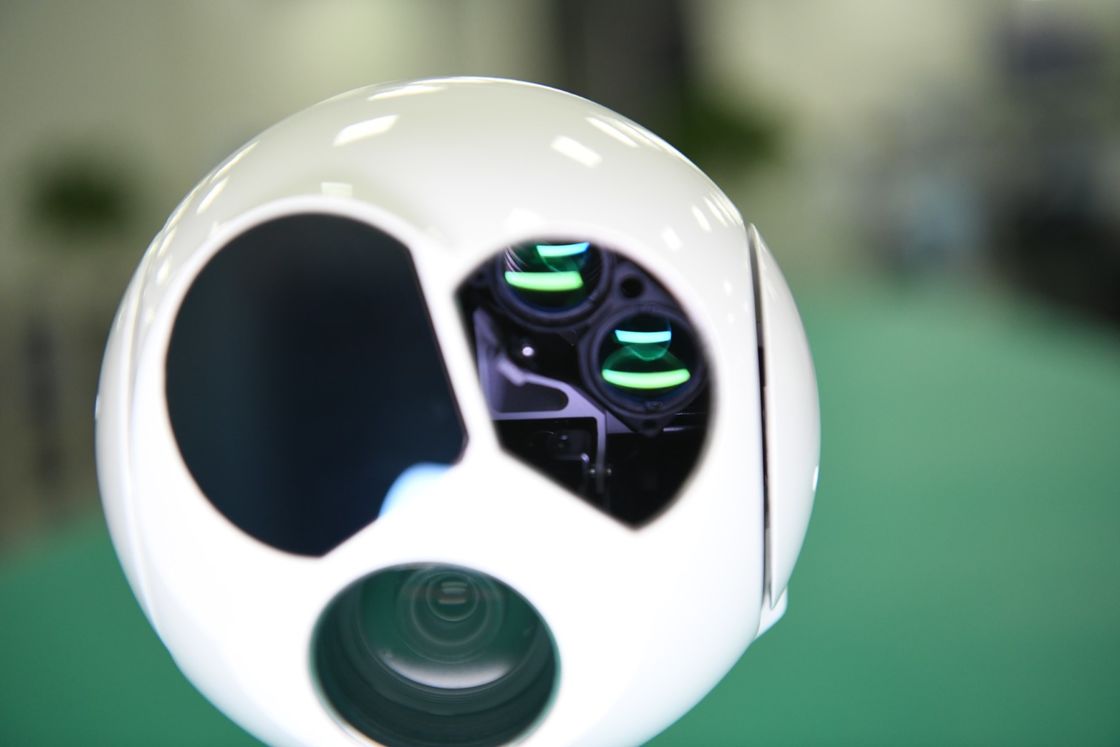

High precision stabilization TS01DT-N is a 3 axis gimbal eletro optical targeting tracking system,30X 3km LRF 360° dual camera is a cost-effective three-axis shake resistance three-view photoelectric pod with AI target detection/recognition/tracking function. Integrated Sony 30x high-quality starlight optical module, 25mm focal length 12μm high-sensitivity thermal imaging module, 3000m laser ranging module; using 640x512 thermal imaging module, the image is clearer, light weight and low wind resistance design, especially suitable for various types of drone,especially for rotor drones.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
9. UDP control and video (UDP/RTSP) transmission by Ethernet
10. IR Pseudo-color temperature measurement
11. Built in video and image storage
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 35mm/F1.0 | |
| FOV | 12.5º×10º | |
| Distance | PEOPLE:Detection 0.7km; Recognition 0.22km VEHICLE:Detection 4.2km; Recognition 1km |
| Laser rangefinder | Wavelength | 905nm/1535nm |
| Performance | ||
| Ranging distance | 1.5km(3km optional) | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL optional) | |||
| Video output | Ethernet | ||||

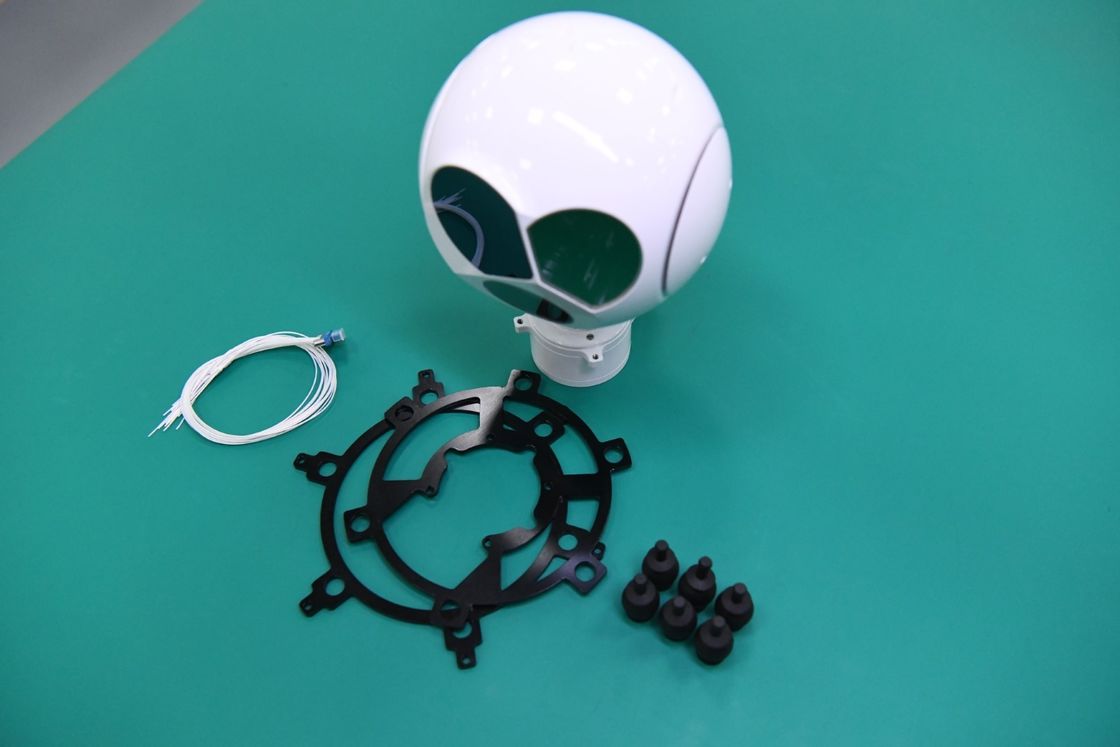

Mechanical Drawing
