Three Axes And Three Sensor UAV Gimable Camera For Long-Range Surveillance Monitoring And Law Enforcement Applications

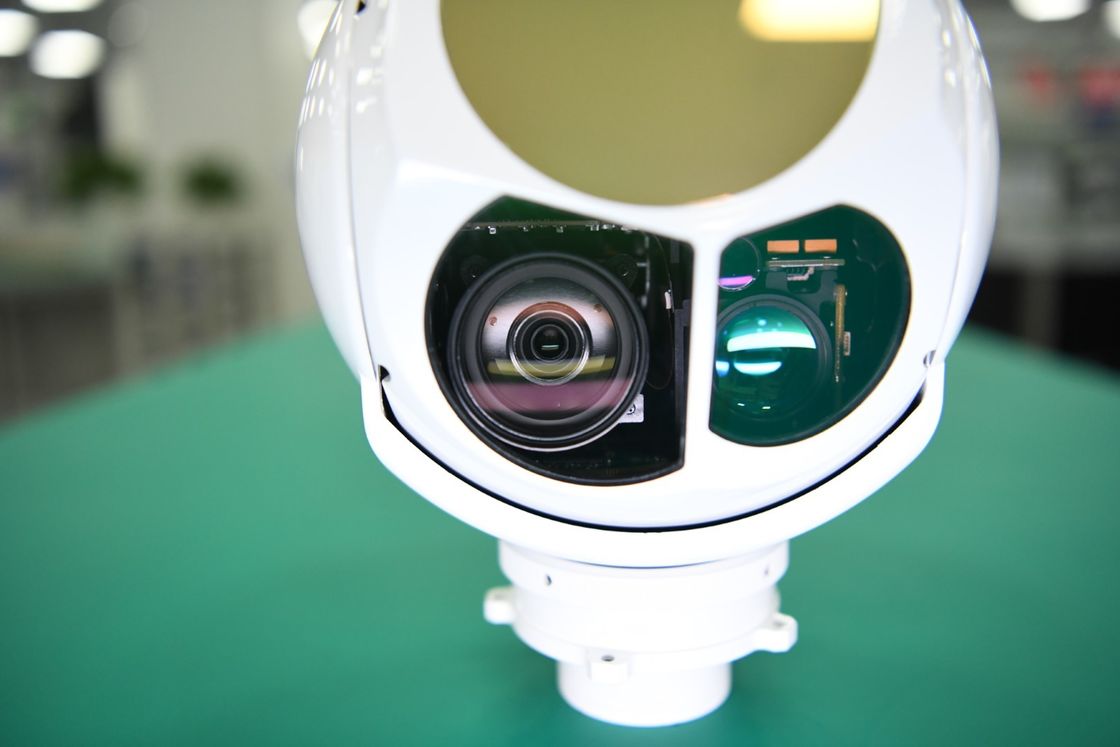

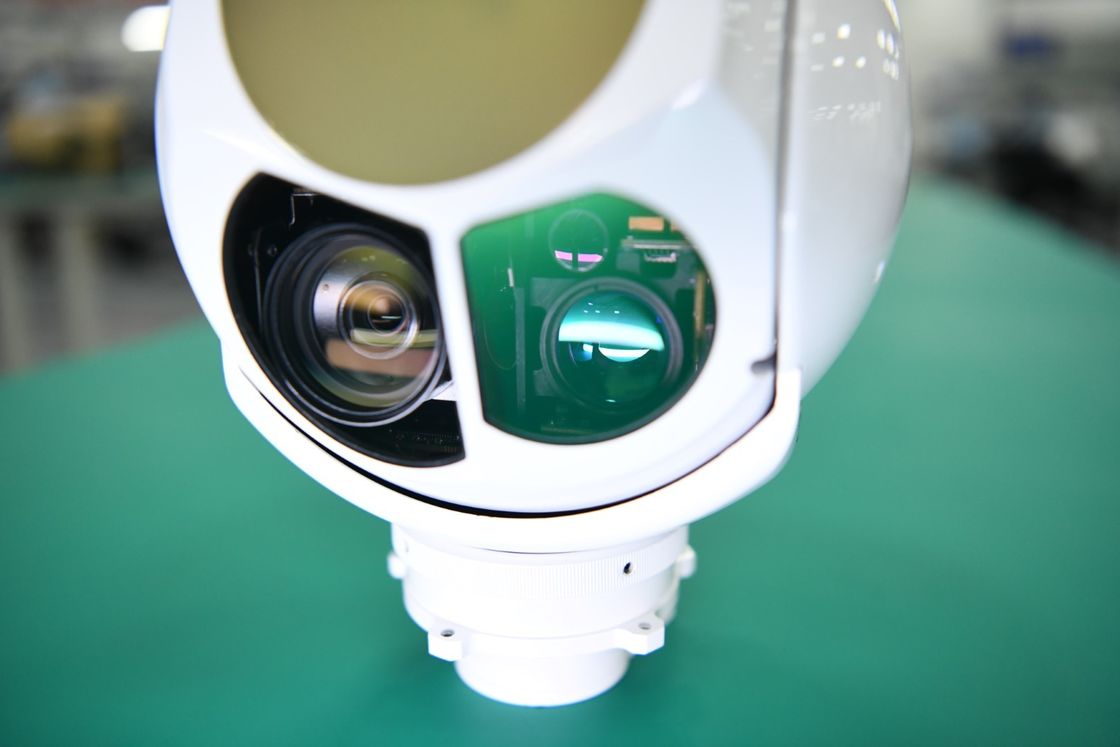

TS02-170 drone camera with 4.3mm～129mm(30X) EO sensor, and 63mm un-cooled longwave thermal module and 4km laser rangefinder,built-in 30X high-definition visible light camera, it can recognition of vehicles 3 m*6 m away from 15KM and people 0.5m*1.8 meters away from 6KM, are mainly used for airborne ground imaging detection, identification, tracking, ranging and positioning, etc., to meet the needs of aerial mapping, monitoring and measurement.
Target tracking
The object tracking is a fundamental feature for long-range surveillance, monitoring and law enforcement applications. The operator can allocate the target and zoom in, while the onboard processor will hold the target in the center of the video screen, regardless of the aircraft movement direction.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 40mk | |
| Focus length | 63mm/F1.0 | |
| FOV | 6.9º×5.5º | |
| Distance | PEOPLE:Detection 1.8km; Recognition 0.4km VEHICLE:Detection 10km; Recognition 2.5km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HDSDI | ||||
Mechanical Drawing
