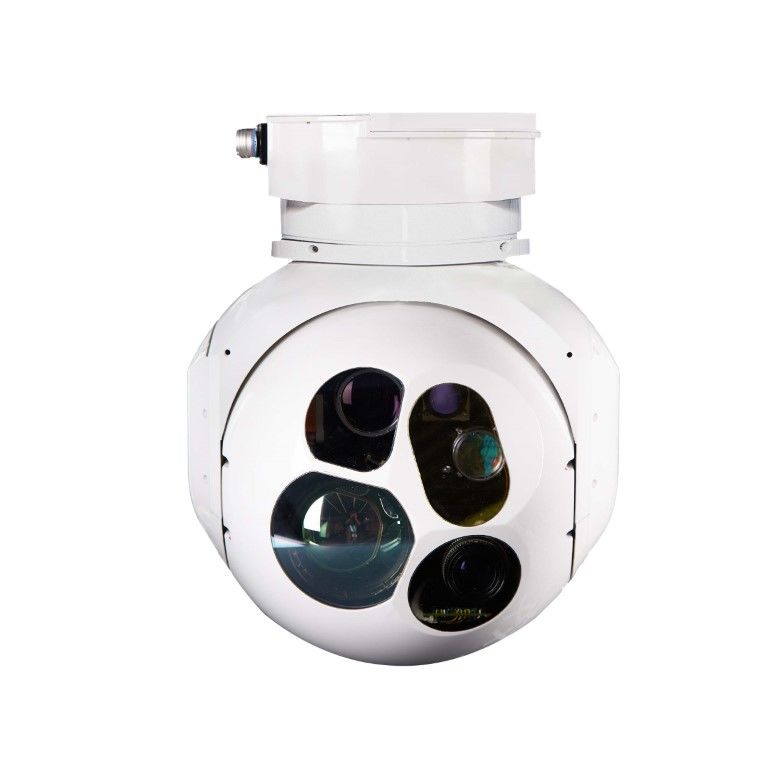

Aircraft Helicopter Dual-IR Sensor Object Tracking EO uncooled LWIR sensor and NIR Electro Optical Infrared Systems
TS20 is gyro stabilized electro optic system with 30X EO sensor, dual IR senaor(uncooled LWIR sensor and NIR) and 8km laser rangefinder,the total weight about 21kg.TS20 support target laser ranging,provide the real-time angular of line of light,angular speed and range information to the mission system and provide the infrared video and image for detection area airborne electro optical system with mature and high stabilization accuracy pan tile servo system technology,with the capability of detection and recognition for ground target and can be asse, Build-in normalization, cross-correlation and tracking algorithm, it provide laser instructions for laser-guied weapon and support user-defined laser precise frequency codes
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging and laser irradiation
8. Support manual tracking, geographic tracking, automatic tracking and search tracking of the target
9. Support target laser ranging,provide the real-time angular of line of light,angular speed and range information to the mission system
10. Provide laser instructions for laser-guied weapon and support user-defined laser precise frequency codes
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |
| Resolution | 1080P | ||
| Focal length | |||
| FOV | 54°～1.9° | ||
| Video output | |||
| Distance | |||
| IR sensor | IR Type | MWIR(Zoom) | NIR(Fixed) |
| Wavelength | 3.7~4.8μm | 0.7um~0.9um | |
| Resolution | 640x512 | 1080p | |
| Pixel | 15um | 3.45μm | |
| NETD | |||
| Focus length | 5-330mm/F4.0； | 180mm/F4.3 | |
| FOV | 35.5°x28.7°~1.8°x1.5° | 2.0°x1.2° | |
| Distance | Detection distance: ≥8km; Identification distance: ≥5km |
Detection distance: ≥9km; Identification distance: ≥6km |
|
| Laser rangefinder | Wavelength | 1064nm | |
| Laser energy | ≥50mJ | ||
| Performance | Range: 300m~8km; Accuracy: ±5m | ||
| Ranging distance | 300m~8km | ||
| Ranging accuracy | ±5 | ||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+20º | |
| Angular accuracy: | |||
| Stablization accuracy | Line of sight stabilization accuracy≤35μrad (1σ) | ||
| Max.angular speed | ≥60°/s | ||
| Max. angular acceleration: | ≥60°/S | ||
| Interface | Communication interface |
RS422*1 (TTL optional) | |
| Video output | HD-SDI *2 | ||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
