63mm Long Wave Uncooled IR Thermal Electro Optical Tracking System

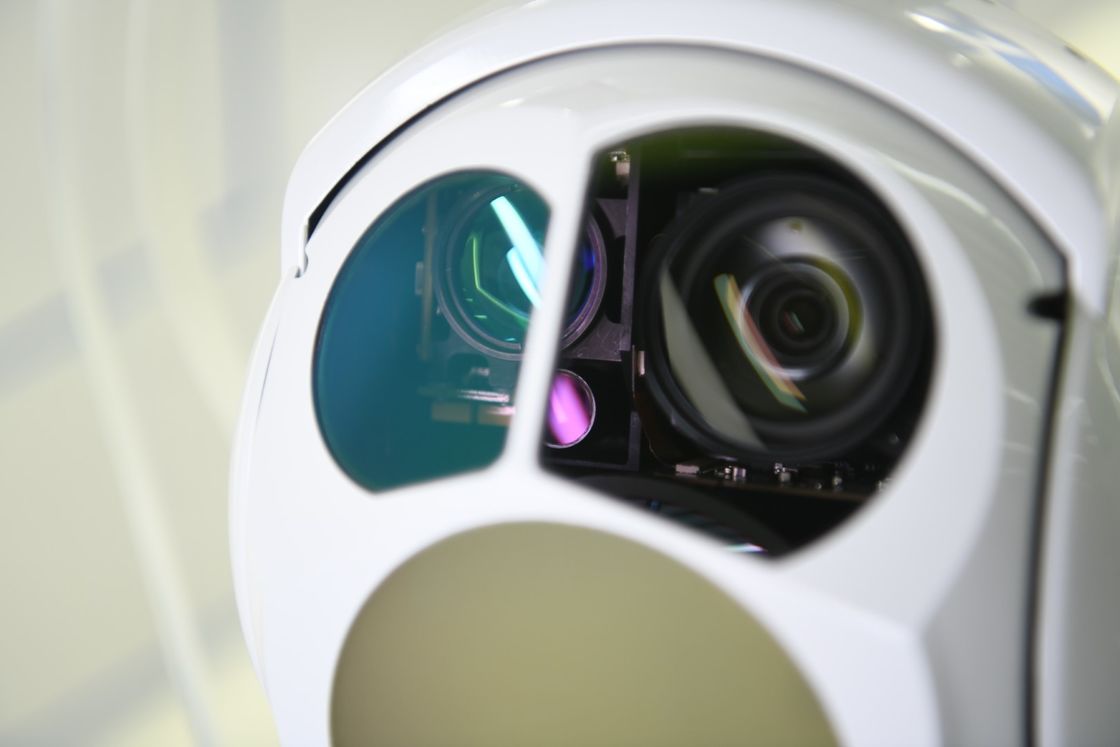

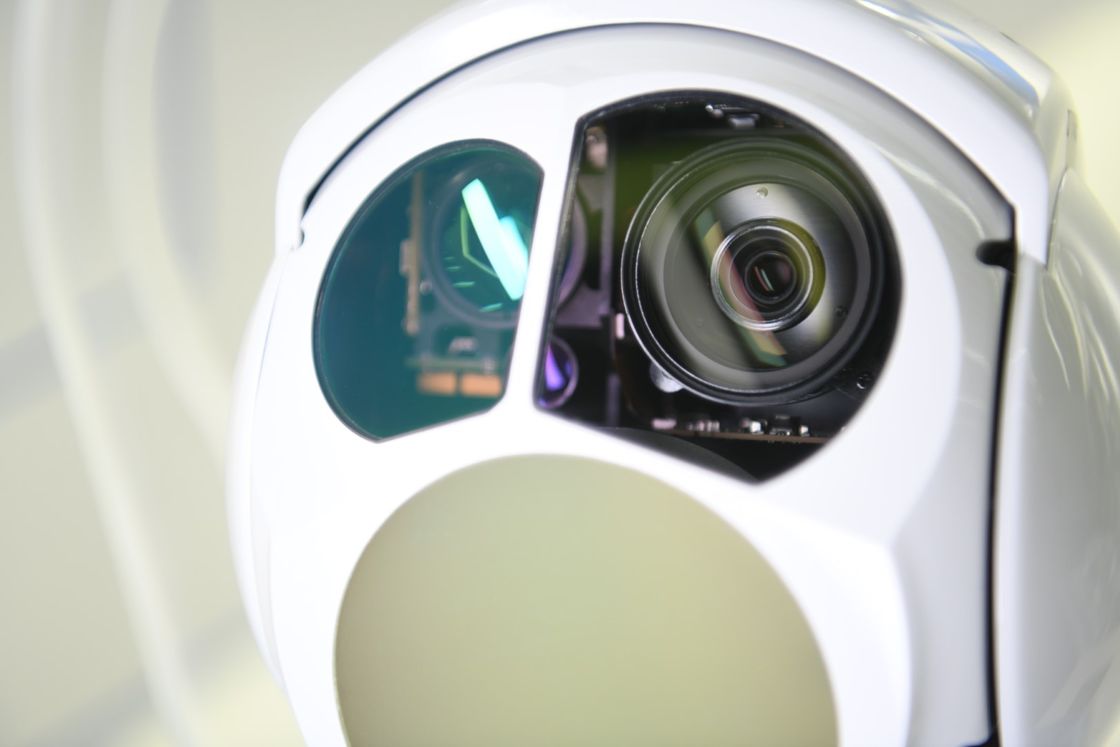

TS02A is update version based TS02 is gyro stabilized UAV payload m with 30X EO sensor , uncooled LWIR and laser rangefinder,360° continuous rotation servo motor, , the total weight about 2.8kg.TS02A airborne electro optical system
The intelligent tracking function automatically locks onto and follows moving targets without requiring human intervention. Whether the target is a person, vehicle, or other object, it can be tracked quickly and accurately, keeping the target centered in your field of view to ensure that no critical details are missed.The 30X visible imaging provides clear and detailed imagery, even in low-light conditions, while the 63mm uncooled infrared imaging provides thermal imaging capabilities, enabling you to see targets in complete darkness or in smoky environments.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 17um | |
| NETD | 60mk | |
| Focus length | 42mm/F1.0 | |
| FOV | 14.6º×11.7º | |
| Distance | PEOPLE:Detection 0.8km; Recognition 0.2km VEHICLE:Detection 5km; Recognition 1.1km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL optional) | |||
| Video output | HDSDIx1 | ||||
Mechanical Drawing
