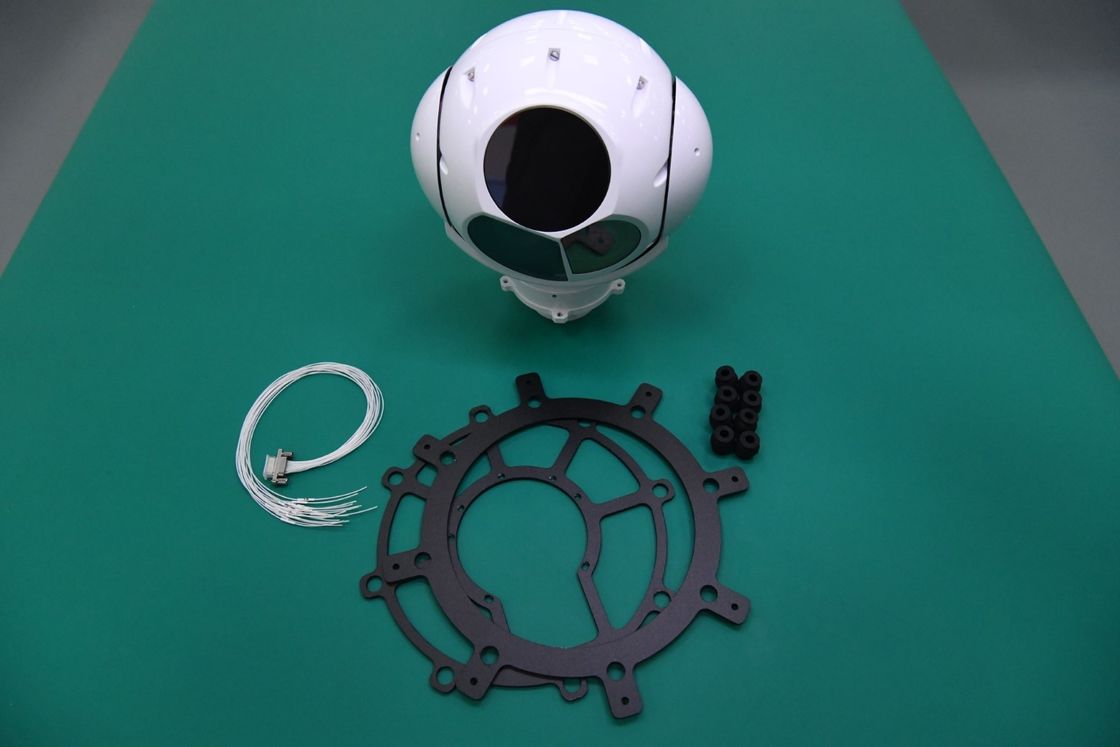

UAV Gimbal Camera with laser rangefinder airborne electro optic system
The Airborne Electro Optical Tracking System is designed With the capability of detection and recognition for ground target, support target postion and laser ranging,making it suitable for use in complex surveillance and security environments. Whether operating in urban, rural, desert, or forest environments, this system can help protect your assets and security. TS02-N as one of airborne electro optic system, support search, tracking, lock, guiding, etc working ways with TTL and Ethernet ouput,30X visible imaging, 63mm uncooled infrared imaging, and 4km laser ranging, support target postion and laser ranging,enabling you to monitor and protect your targets with extreme precision.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 50mm/F1.0 | |
| FOV | 8.8º×7.0º | |
| Distance | PEOPLE:Detection 1.4km; Recognition 0.35km VEHICLE:Detection 8.4km; Recognition 2.1km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL optional) | |||
| Video output | 100mb Ethernet | ||||
