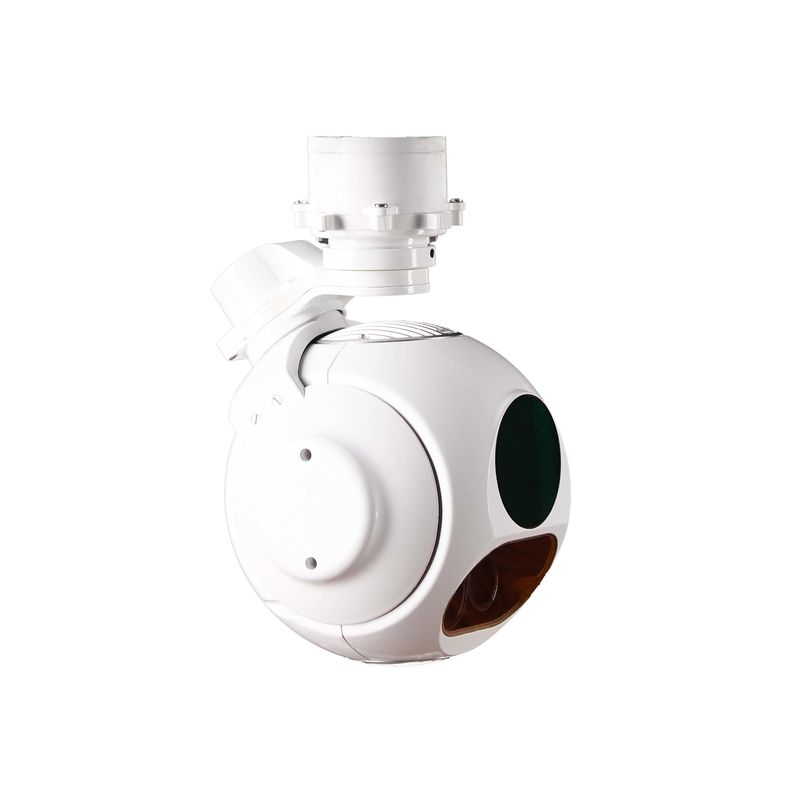

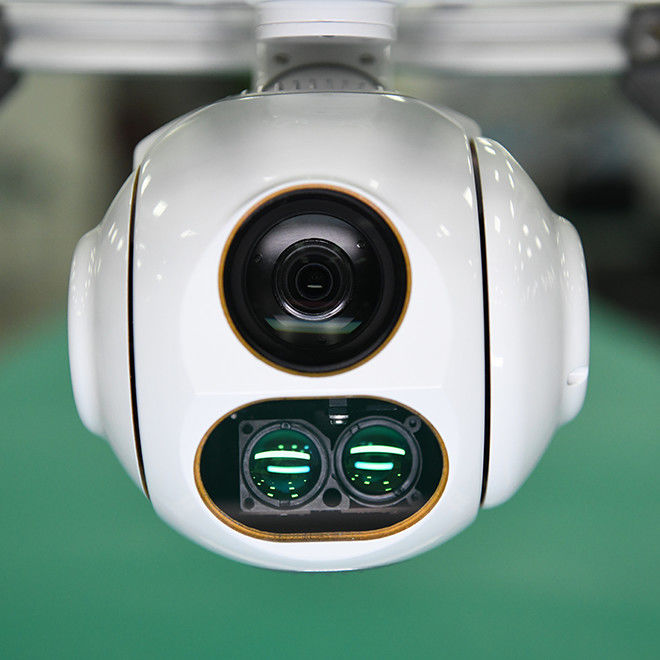

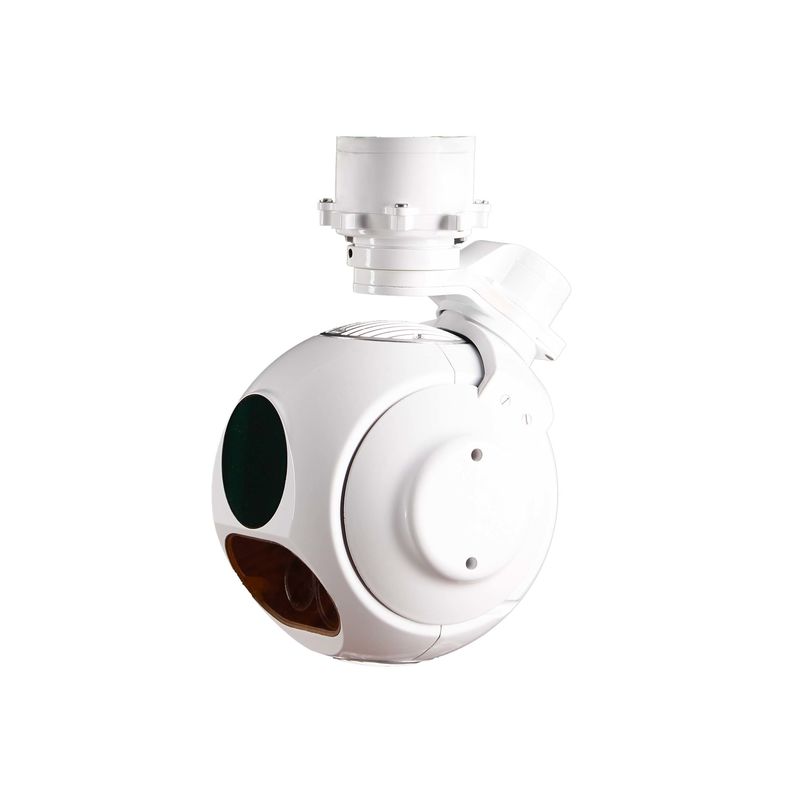

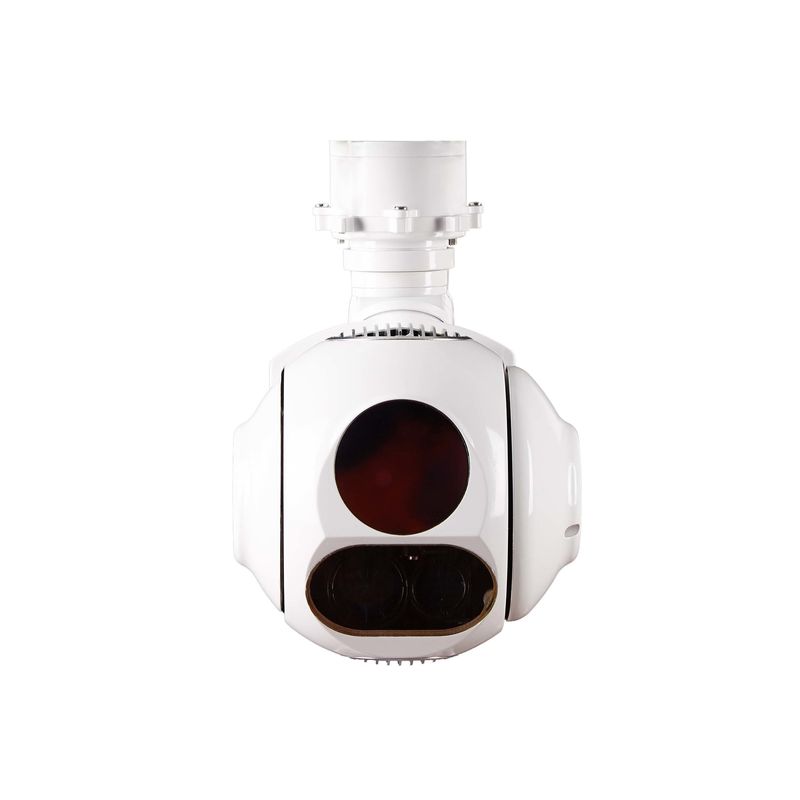

Three Axis EO Sensor And Laser Rangefinder Airborne Electro Optical Pod
TS120BT-02 is three- axis gyro stabilized gimbal airborne electro optical pod , 360° continuous rotation servo motor, Built-in 30X HD zoom camera and 1km laser rangefinder, the total weight about 860g.TS120BT-02 airborne electro optical pod with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
Functions
Mainly used in security, search and detection, line inspection, disaster/emergency rescue and other fields.
1. Provide the visible video and image for detection area
2. High precision visual axis stabilization design
3. With the capability of detection and recognition for ground target
4. Support searching, tracking, locking, guiding, etc working ways
5. With character overlay, customization and display functions;
6. With self - check and fault diagnosis function
7. support for target postion and laser ranging
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| Laser rangefinder | Wavelength | 905nm |
| Performance | 3m~1km | |
| Ranging distance | 3~1000m | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
