Place of Origin:
China
Brand Name:
HONPHO
Certification:
ISO9001:2015/GB/T 19001-2016
Model Number:
TS01G
Contact Us

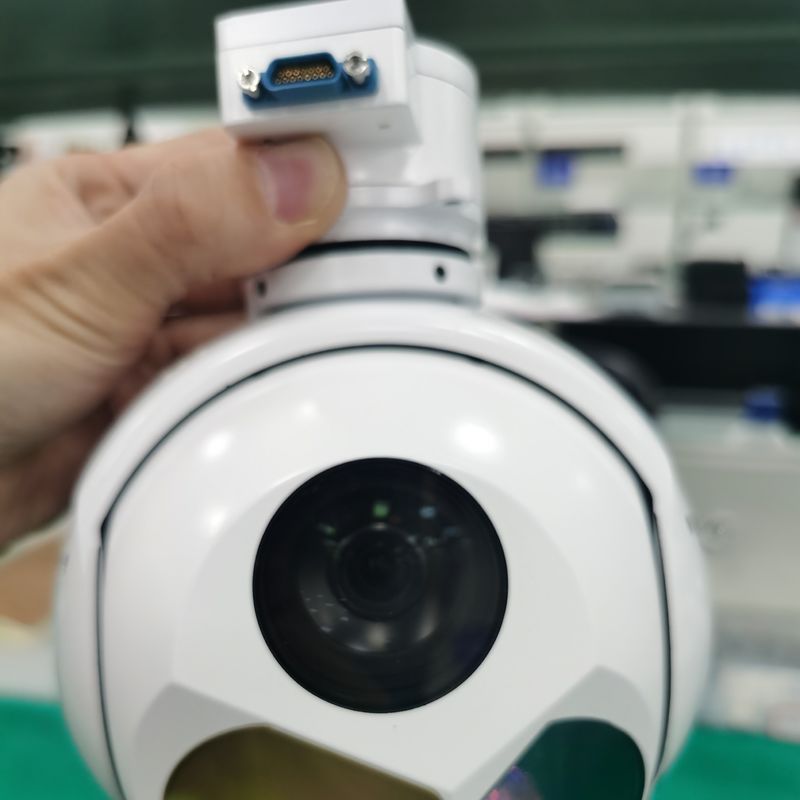

Auto target tracking 10X optiical system gimbal camera
TS01G EOsensor: PEOPLE:Detection 2km;Recognition 0.7km VEHICLE:Detection 5km;Recognition 2.7km
IR sensor: PEOPLE:Detection 0.7km;Recognition 0.2km VEHICLE:Detection 4.2km;Recognition 1km
Laser ranging distance: 3km
Functions
1. Provide the visible video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions
6. with target-position and laser randing functions
7. With self - check and fault diagnosis function
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 3.3mm～33mm(10X) | ||||
| FOV | 58.2°～6.9° | ||||
| Video output | Ethernet | ||||
| Distance | PEOPLE:Detection 2km;Recognition 0.7km VEHICLE:Detection 5km;Recognition 2.7km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 25mm/F1.0 | |
| FOV | 17.4º×14º | |
| Distance | PEOPLE:Detection 0.7km; Recognition 0.2km VEHICLE:Detection 4.2km; Recognition 1km |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Laser rangefinder | Wavelength | 1535nm |
| Performance | 3km | |
| Ranging distance | 50~3000m | |
| Ranging accuracy | ±1 |
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL Optional) | |||
| Video output | Ethernet | ||||
Mechanical Drawing
