30X Continuous Zoom 2 Axis ISR Payload Gyro Stabilized Gimbal

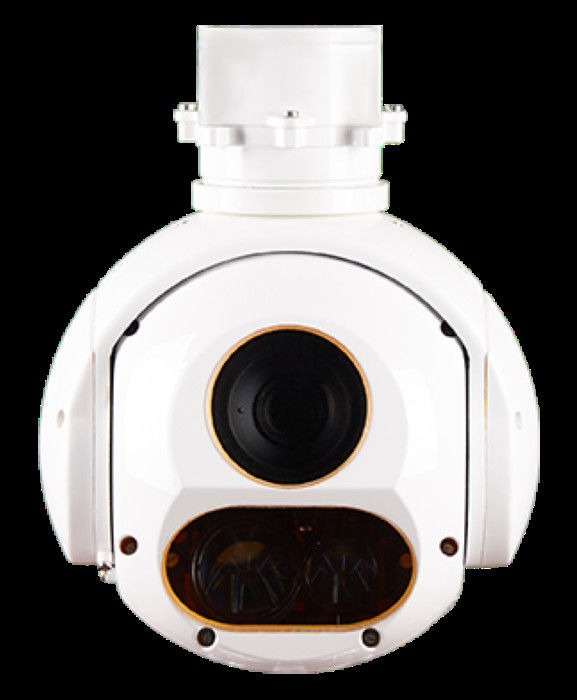

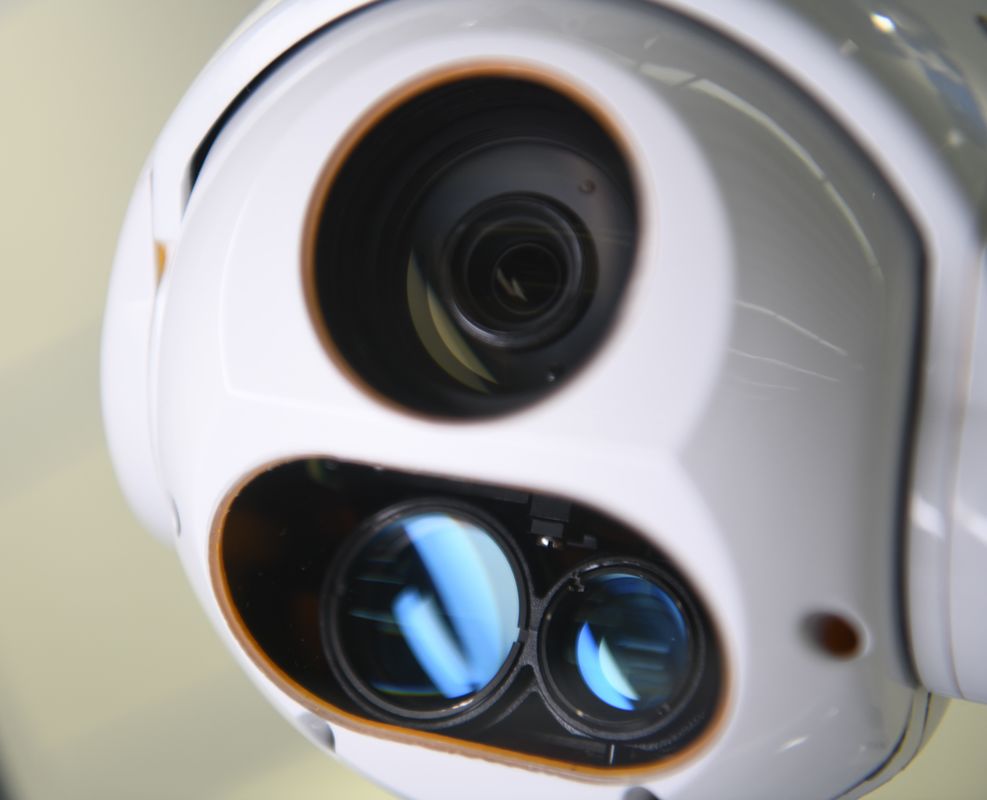

TS120B-01 is one kind of two- axis gyro stabilized gimbal camera which integrated 30X EO sensor and 905nm 1km laser rangefingder. Every assemblies working together make final image of detection and ranging stable and clear. With laser randefinder, you can targrt the object in distance by IR, and it supports coordinate calculation which means automatically checks object coordinate. Alluminum alloy hosing is ideal for light weight, meanwhile keeping perfectly anti-interference and cooling speciality.
Functions
1. Provide visible video and image for detection area
2. High precision visual axis stabilization
3. Capability of detection and recognition for ground target
4. Support searching, tracking, locking, guiding, etc working modes
5. Support characters overlay, custom and display
6. With self - check and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| Laser rangefinder | Wavelength | 905nm |
| Performance | 3m~1km(3km optional) | |
| Ranging distance | 3~1000m | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1 | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
