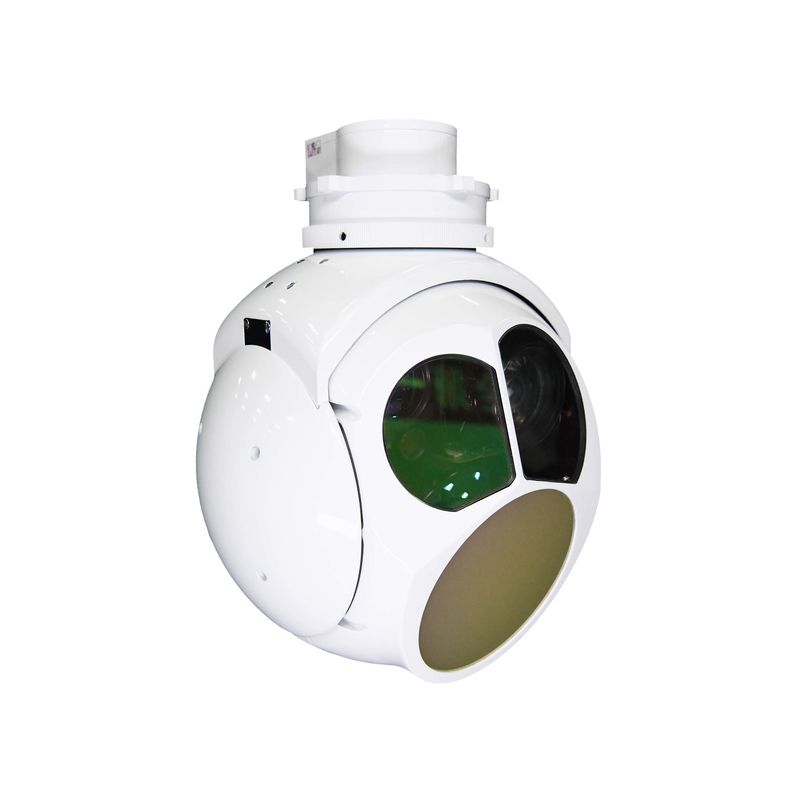

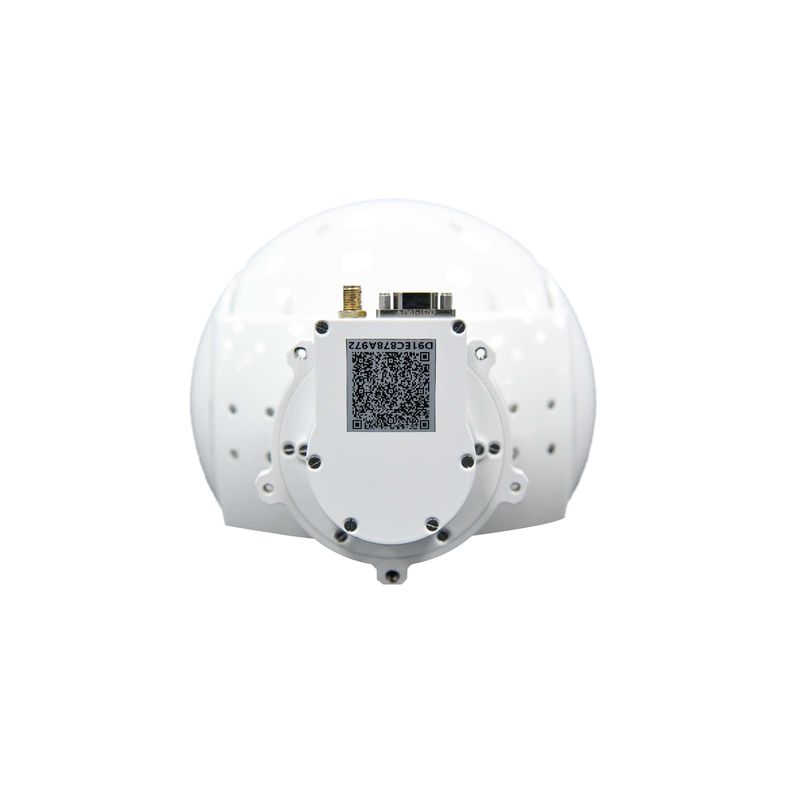

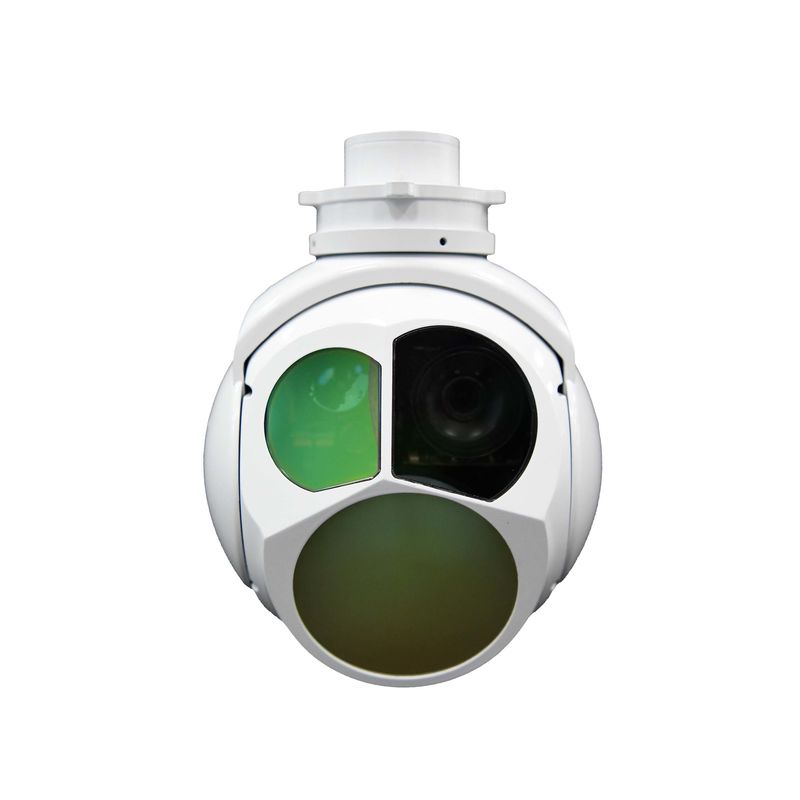

30X EO Sensor Thermal LWIR Airborne Electro Optical Pod Tracking System
TS170C-02 is two- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in 30X HD zoom camera and longwave infrared module (LWIR uncooled) and laser rangefinder, mainly used in airborne imaging detection, recognition, tracking and ranging and positioning.
It supports Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360 degree enless pan. It is 30X Visible LWIR Thermal Core Laser Rangefinder Camera For Drone With Targering Tracking System.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. Support characters overlay, custom and display
6. With self - check and fault diagnosis
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 40mk | |
| Focus length | 63mm/F1.0 | |
| FOV | 6.9º×5.5º | |
| Distance | PEOPLE:Detection 1.8km; Recognition 0.4km VEHICLE:Detection 10km; Recognition 2.5km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HDSDI | ||||
Mechanical Drawing
