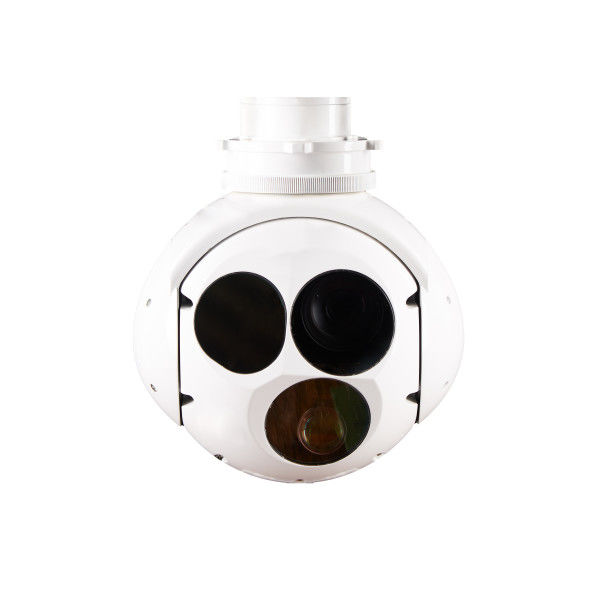

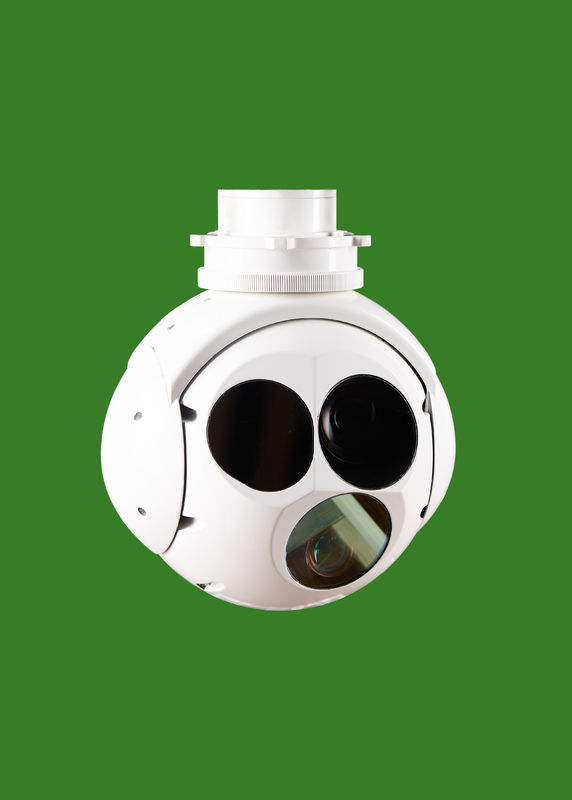

2.5kg 2Axis Electronic Optical UAV Payload With Laser Irradiation
TS192C-01 is two- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in 30X HD zoom camera and longwave infrared module (LWIR uncooled) and laser designator mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc, meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
TS192C-01 with light weight, mature and reliable technology, and can be assembled in various types of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the HD visible and long wave infrared video and image for detection area
2. High precision visual axis stabilization function
3.With the capability of detection and recognition for ground target
4. Detection and identification of ground targets
5. Search, track, lock, guide and other operating modes
6. Target locating capability
7. Laser illumination and ranging
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 | |
| Focal length | 4.3mm～129mm(30X) | |
| FOV | 63.7°～2.3° | |
| Video output | HD-SDI(1080P 30Hz) | |
| Distance | PEOPLE: Detection 6km; Recognition 2km VEHICLE: Detection 15km; Recognition 8km | |
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 35mm/F1.0 | |
| FOV | 12.4º×9.9º | |
| Distance | Target: 2.3m*2.3m Vehicle Detection: 5.7; Recognition: 1.4 |
|
| Laser rangefinder | Wavelength | 1064nm |
| Laser energy | ≥25mJ | |
| Ranging distance | 120m~5000m | |
| Ranging accuracy | ≤3m | |
| Servo System | Rotating limits | Azimuth: nX360º continuous; Pitch: -110° ~+10 º |
| Angular accuracy: | ≤2mrad | |
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz) | |
| Max.angular speed | ≥60°/s | |
| Max. angular acceleration: | ≥60°/S | |
| Interface | Communication interface |
RS422*2 (TTL optional) |
| Video output | HD-SDI*1 | |
| General | Dimension | ≤Φ172mm×200mm |
| Weight | ≤2.5kg | |
| Voltage | DC24V(20V~28V) | |
| Power consuption | Average:≤50W, Peak: ≤100W | |
| Working temperature | -20℃～60℃ | |
| Storage temperature | / | |
| Tracking Functions | Motion speed: | 30pixel/ frame |
| Target imaging contrast: | 5% | |
| Target imaging pixel(Mini) | 4x3 pixels | |
| Support | Anti -occlusion without loss of function |
