Place of Origin:
China
Brand Name:
HONPHO
Certification:
ISO9001:2015/GB/T 19001-2016
Model Number:
TS02-170
Contact Us

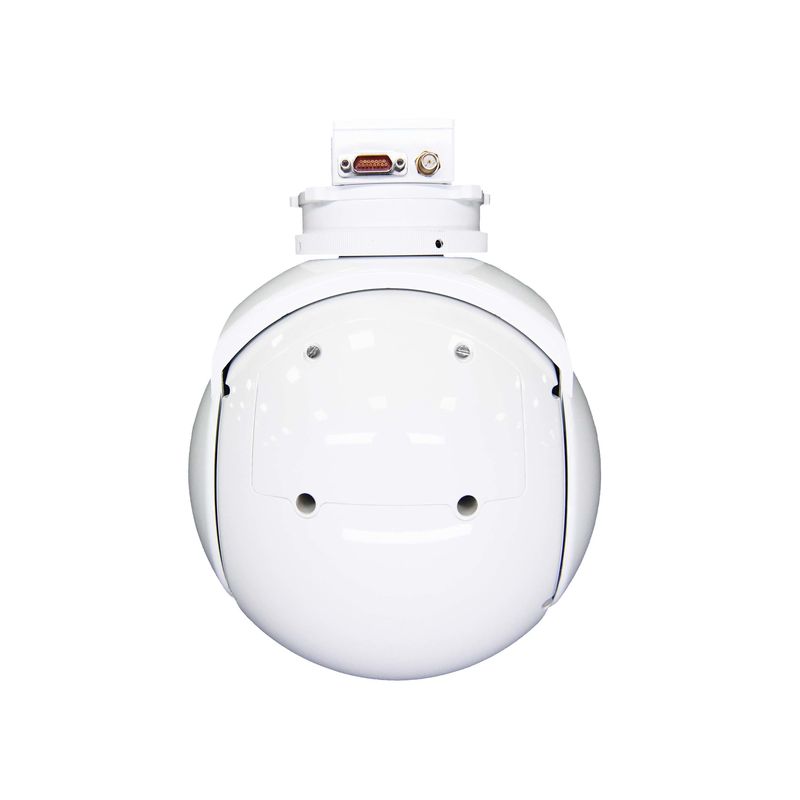

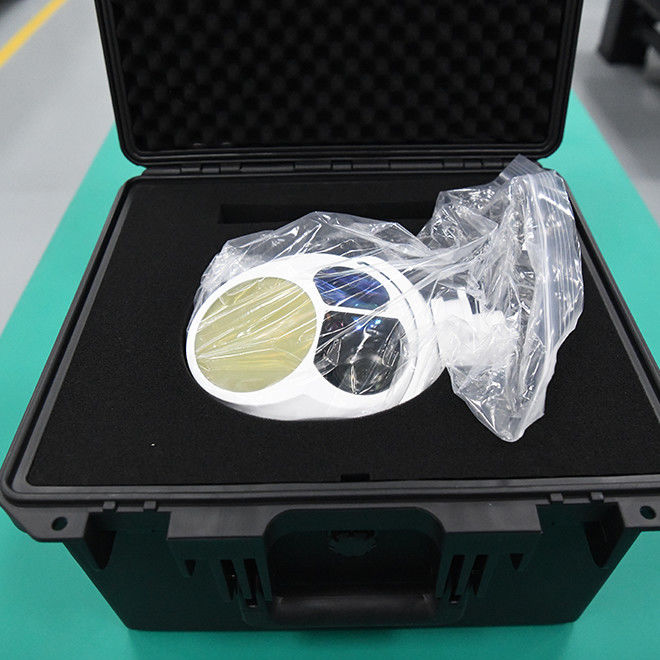

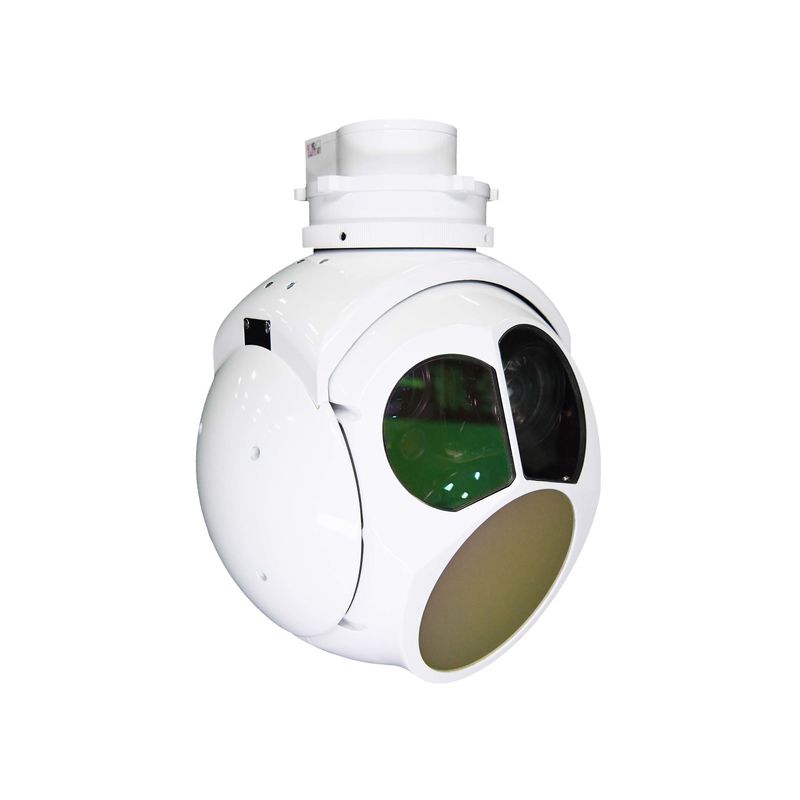

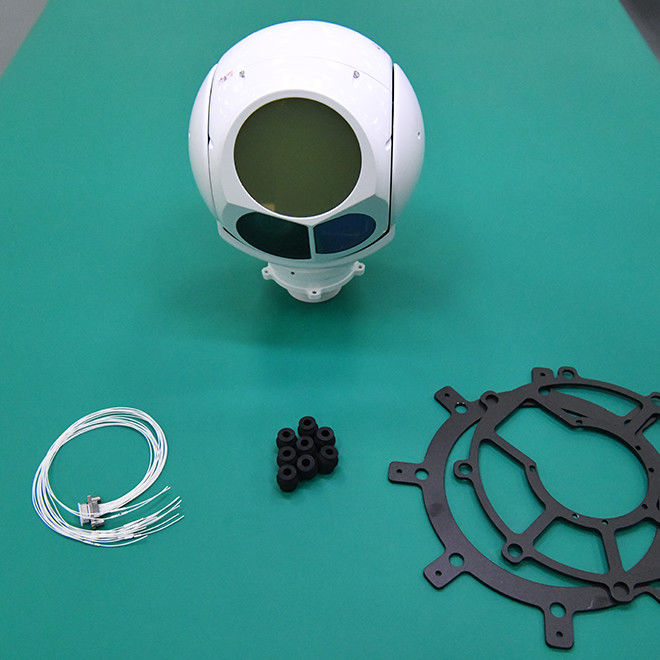

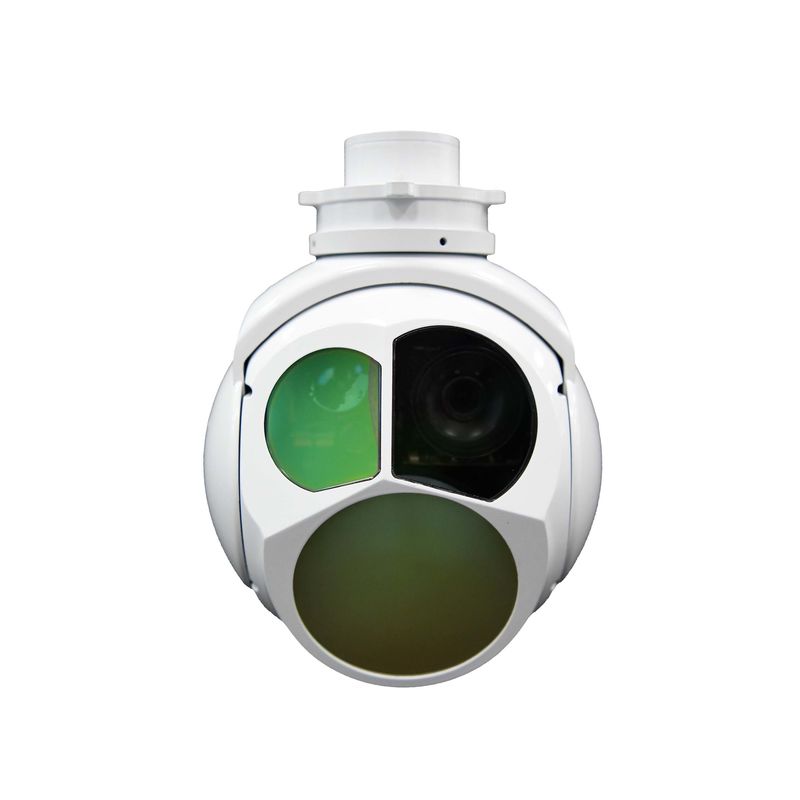

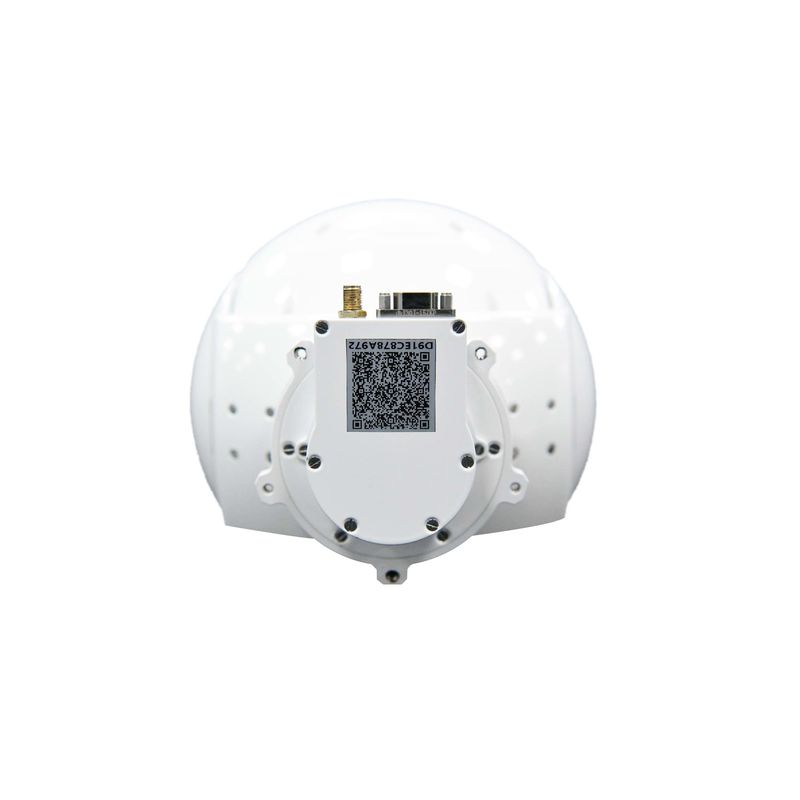

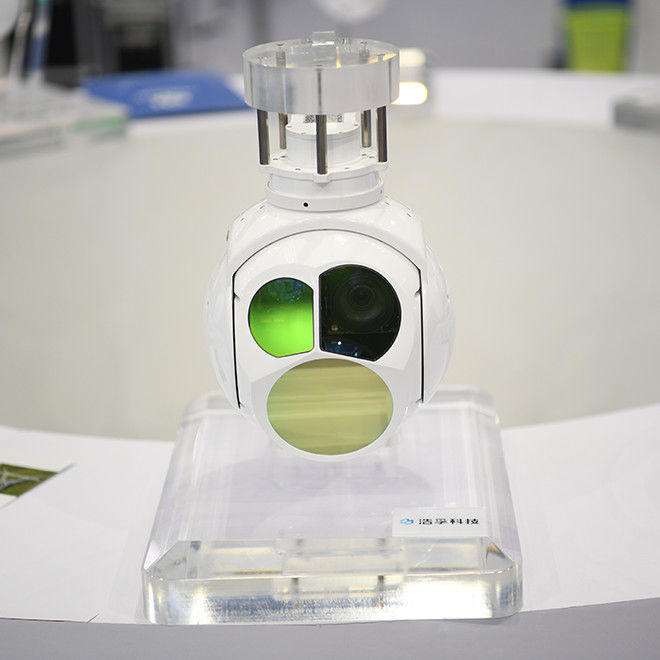

Professional Two-Axis Thermal Infrared gimbal stabilizer drone 4k laser camera
Functions
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output |
Ethernet output (1080P 30Hz) |
||||
| Distance |
PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km |
||||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1 | |||
| Video output |
Ethernet (100mb) *1
|
||||
Mechanical Drawing
Company Profile
Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress , and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise.
