Place of Origin:
China
Brand Name:
HONPHO
Certification:
ISO9001:2015/GB/T 19001-2016
Model Number:
TS02A
Contact Us

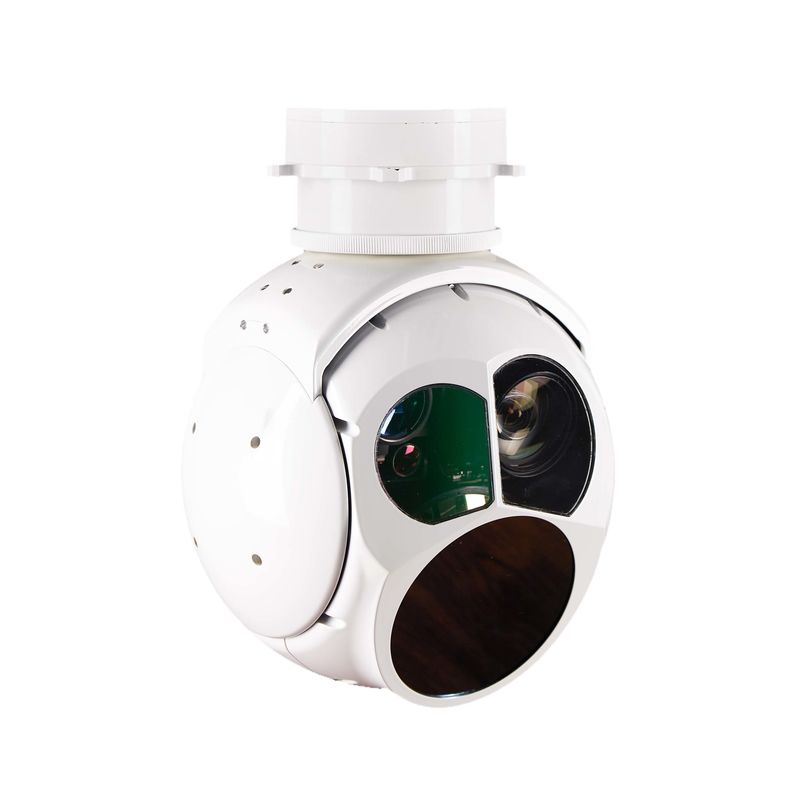

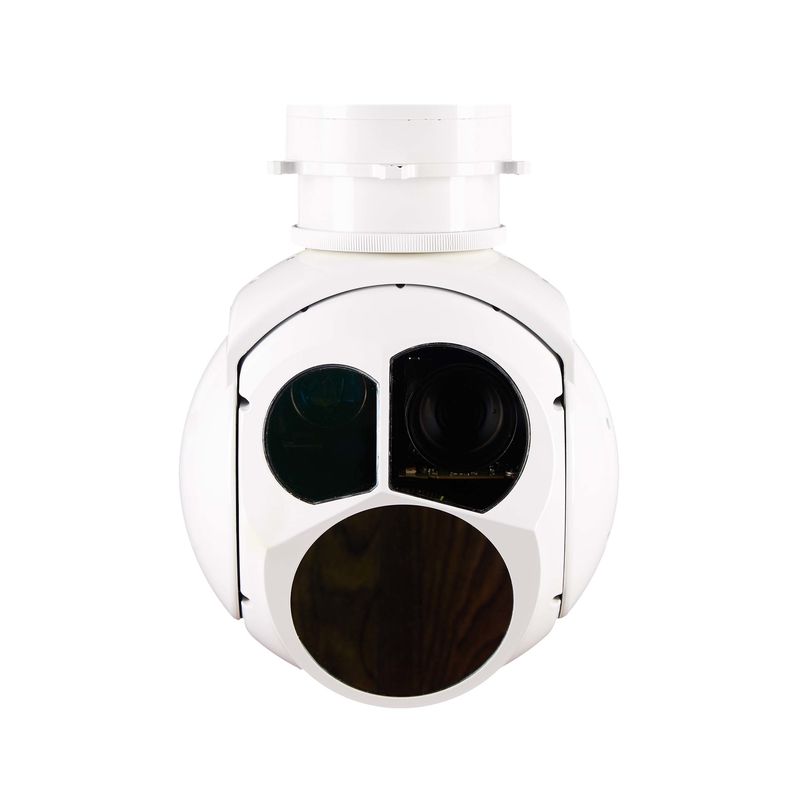

Drone thermal infrared laser range EO Sensor camera de surveillance sans fil with optical zoom
Functions
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output |
Ethernet output (1080P 30Hz) |
||||
| Distance |
PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km |
||||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1 | |||
| Video output |
Ethernet (100mb) *1
|
||||
Mechanical Drawing
