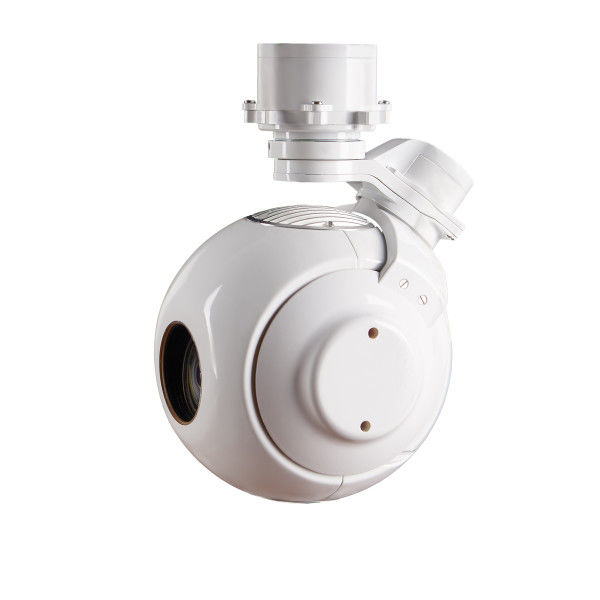

High Stabilization Accuracy 3 Axis 1kg EO Sensor UAV Gimbal Camera
TS01T is three- axis gyro stabilized gimbal UAV gimblal camera, support 360° continuous rotation, Built-in 30X HD zoom visibla camera,
the weightonly one kilogram, the servo stabilization system developed by HONPHO, the stabilization accuracy ≤ 2mrad,it is necessary payload for various types of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the visible video image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. suppot target pos
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance |
PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km |
||||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 ºRolling:-40°~+40° | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤200μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2 | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
