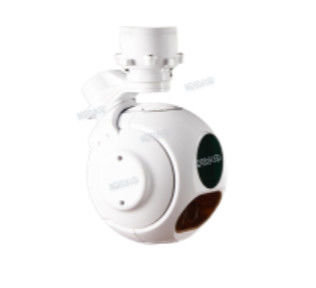

Three- Axis Gyro Stabilized Electro Optical Tracking System Gimbal Payload
TS120BT-01 is three- axis gyro stabilized electro optical UAV gimbal camera , 360° continuous rotation servo motor, Built-in 640x512 resolution IR sensor and 1km laser rangefinder, the total weight about 780g.TS120BT-01 airborne electro optical pod with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for target
4. Support search, tracking, lock, guiding, etc working mode
5. With character overlay, custom and display functions
6. With the function of self-check and fault diagnosis
7. Support for target postioning and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 25mm/F1.0 | |
| FOV | 17.4º×14º | |
| Distance | PEOPLE:Detection 0.7km; Recognition 0.22km VEHICLE:Detection 4.2km; Recognition 1km |
| Laser rangefinder | Wavelength | 905nm |
| Performance | 3m~1km | |
| Ranging distance | 3~1000m | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
