2 Axis 2.5KG UAV Gimbal Camera with Laser Irradiation Function
Introduction of 2 Axis 2.5KG UAV Gimbal Camera with Laser Irradiation Function

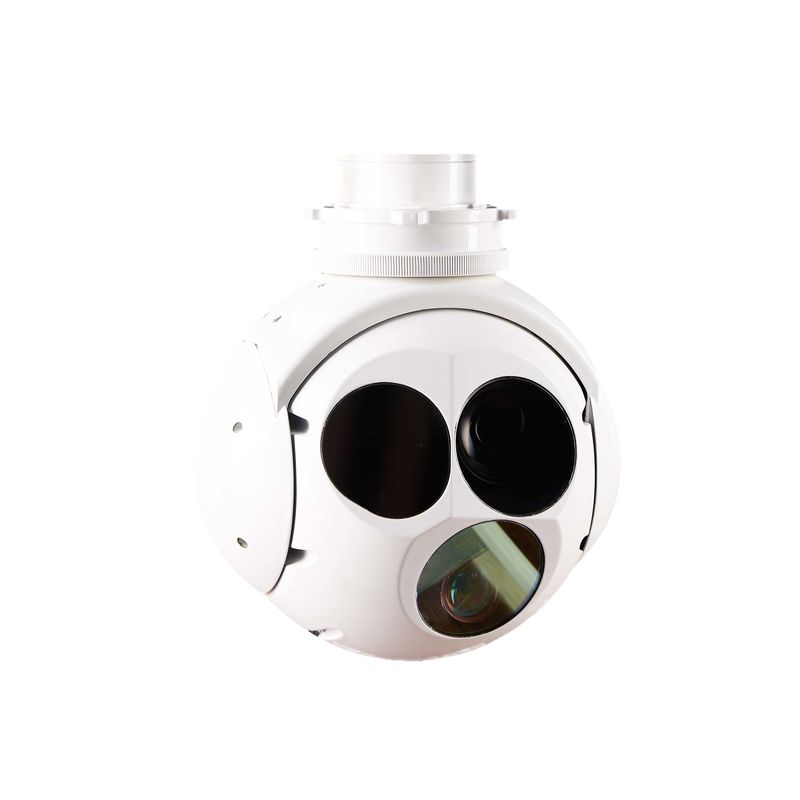

TS03 is 2 Axis 2.5KG UAV Gimbal Camera with Laser Irradiation Function, composed of stable turret, optical load and information processing circuit.Among them, the optical load is mainly composed of visible light imaging module, long-wave uncooled infrared imaging module and laser illuminator.Besides, It can also used in airborne imaging detection, recogniton, tracking, etc,it has the ability to detect and identify ground targets.
Functions
1. High precision LOS stabilization
2. Visible and infrared dual-light imaging
3. Detection and identification of ground targets
4. Search, track, lock, guide and other operating modes
5. Target locating capability
6. Laser illumination and ranging
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 | |
| Focal length | 4.3mm～129mm(30X) | |
| FOV | 63.7°～2.3° | |
| Video output | HD-SDI(1080P 30Hz) | |
| Distance | PEOPLE: Detection 6km; Recognition 2km VEHICLE: Detection 15km; Recognition 8km | |
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 35mm/F1.0 | |
| FOV | 12.4º×9.9º | |
| Distance | Target: 2.3m*2.3m Vehicle Detection: 5.7; Recognition: 1.4 |
|
| Laser rangefinder | Wavelength | 1064nm |
| Laser energy | ≥25mJ | |
| Ranging distance | 120m~5000m | |
| Ranging accuracy | ≤3m | |
| Servo System | Rotating limits | Azimuth: nX360º continuous; Pitch: -110° ~+10 º |
| Angular accuracy: | ≤2mrad | |
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz) | |
| Max.angular speed | ≥60°/s | |
| Max. angular acceleration: | ≥60°/S | |
| Interface | Communication interface |
RS422*2 (TTL optional) |
| Video output | HD-SDI*1 | |
| General | Dimension | ≤Φ172mm×200mm |
| Weight | ≤2.5kg | |
| Voltage | DC24V(20V~28V) | |
| Power consuption | Average:≤50W, Peak: ≤100W | |
| Working temperature | -20℃～60℃ | |
| Storage temperature | / | |
| Tracking Functions | Motion speed: | 30pixel/ frame |
| Target imaging contrast: | 5% | |
| Target imaging pixel(Mini) | 4x3 pixels | |
| Support | Anti -occlusion without loss of function |
