Place of Origin:
China
Brand Name:
HONPHO
Certification:
ISO9001:2015/GB/T 19001-2016
Model Number:
TS01
Contact Us

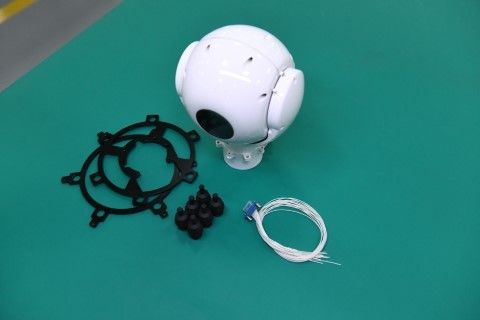

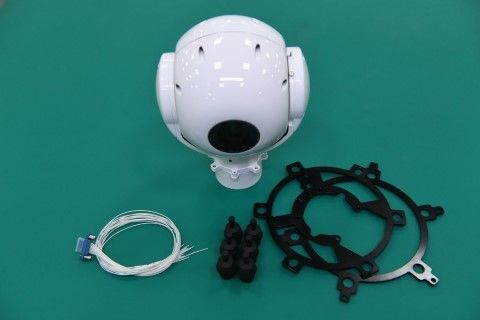

30x Starlight Night Vision 1280 UAV Gimbal Camera
TS01 with 30x Starlight Night Vision 1280 IR thermal Camera Tracking Payload Camera, is a high level dual-sensor gimbal camera for long range surveillance and inspection. It integrates a 30x optical zoom SONY 1/1.8" Type STARVIS night vision camera
Functions
1. Provide the visible video image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, auto tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance |
PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km |
||||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1 | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
