Long Range Surveillance UAV Gimbal Camera

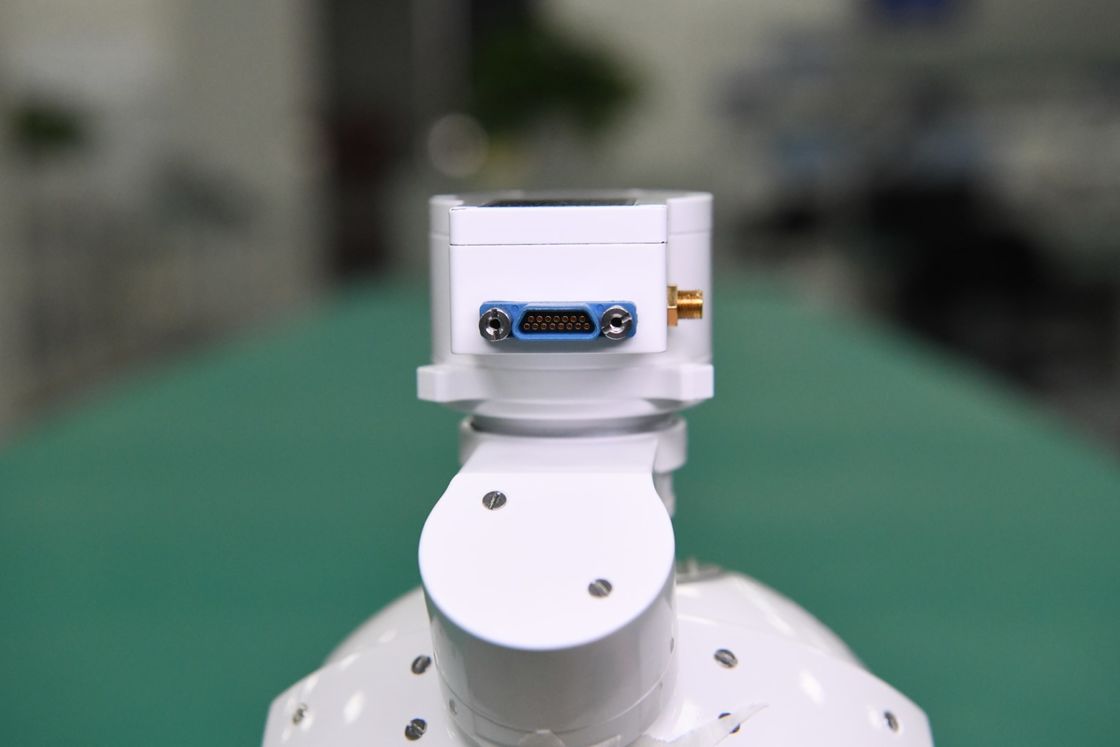

TS01DT Airborne EO gimbal camera is a high-performance camera designed for use in unmanned aerial vehicles (UAVs) and other airborne platforms. It features a 3-axis stabilized gimbal system that provides smooth and stable footage, even in turbulent conditions.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 25mm/F1.0 | |
| FOV | 17.4º×14º | |
| Distance | PEOPLE:Detection 0.7km; Recognition 0.22km VEHICLE:Detection 4.2km; Recognition 1km |
| Laser rangefinder | Wavelength | 905nm/1535nm |
| Performance | ||
| Ranging distance | 1.5km(3km optional) | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤200μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
