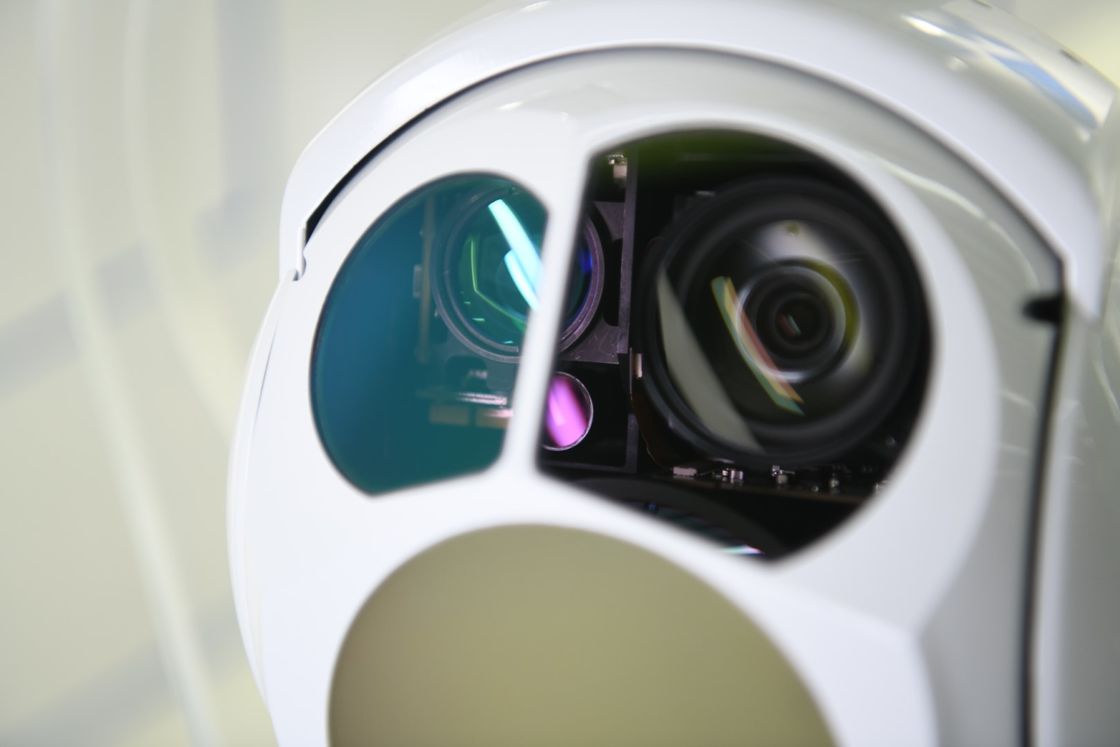

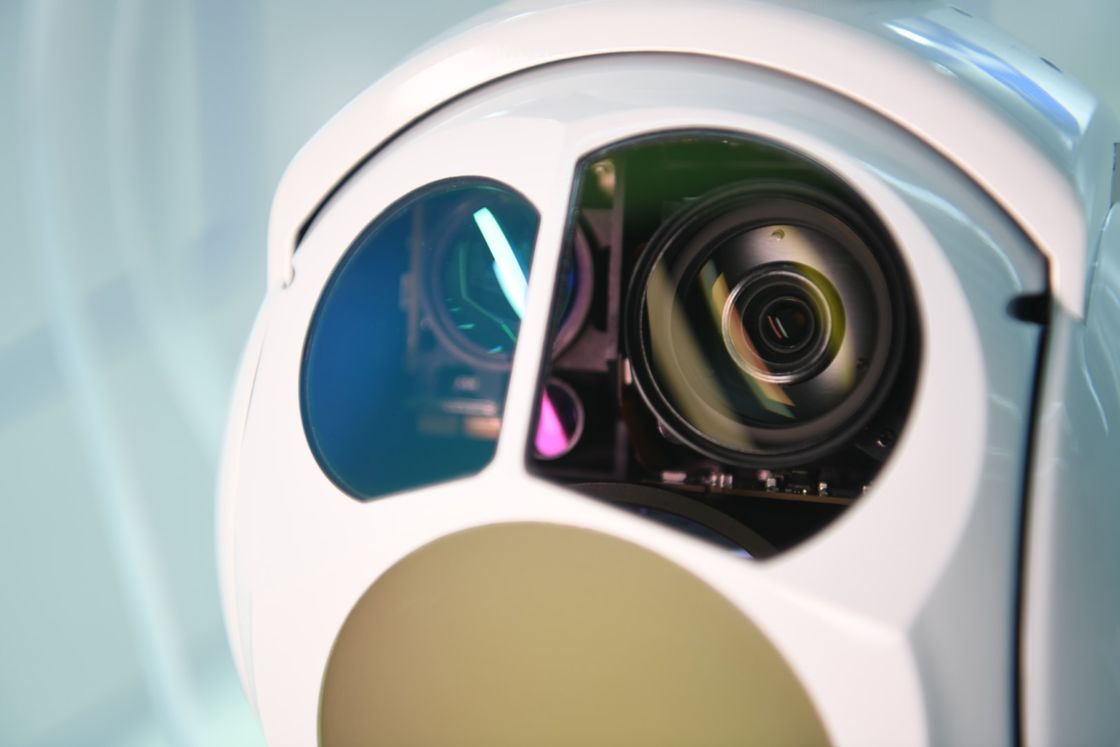

63mm long wave uncooled IR thermal UAV gimbal camera
TS02A is update version based TS02 is gyro stabilized UAV payload m with 30X EO sensor , uncooled LWIR and laser rangefinder,360° continuous rotation servo motor, , the total weight about 2.8kg.TS02A airborne electro optical system with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
TS02 Airborne EO gimbal camera is ideal for a wide range of applications, including surveillance, search and rescue, mapping, and more. It is designed to be lightweight, compact, and easy to install, making it a versatile and convenient tool for aerial imaging.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 17um | |
| NETD | 60mk | |
| Focus length | 42mm/F1.0 | |
| FOV | 14.6º×11.7º | |
| Distance | PEOPLE:Detection 0.8km; Recognition 0.2km VEHICLE:Detection 5km; Recognition 1.1km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL optional) | |||
| Video output | HDSDIx1 | ||||
Mechanical Drawing
