Dual Sensor Gimbal Payload EO MWIR IR With Laser Range Finde

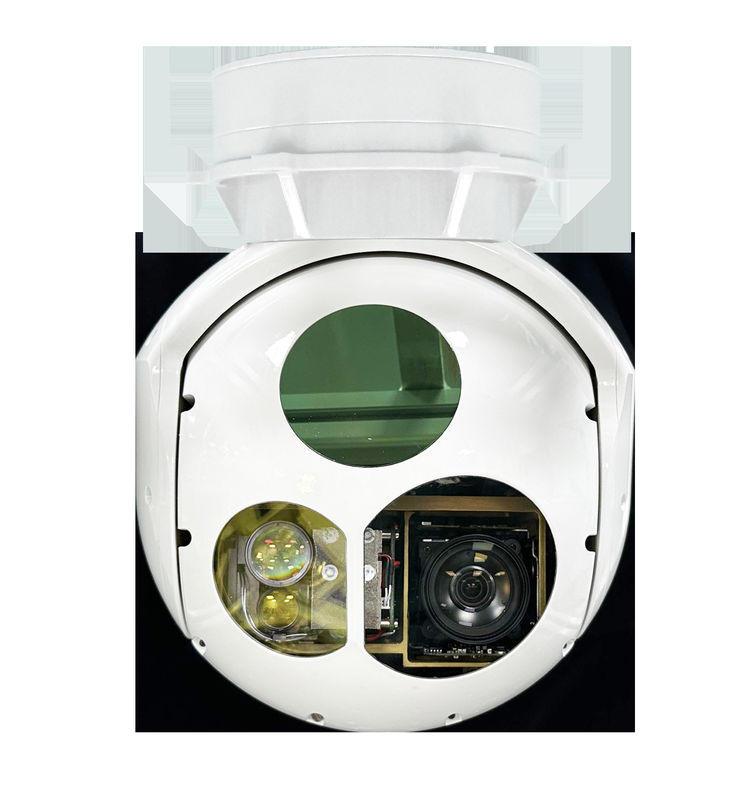

TS210C-01 is gyro stabilized mutiple spectral aviation electro optic system with 30X EO sensor, cooled MWIR ,360° continuous rotation servo motor and high precision visual axis stabilization function, the total weight about 5.5kg.TS210C-01 airborne electro optical system with light weight, mature and high stabilization accuracy pan tile servo system technology, and own character overlay, custom and display functions, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.
TS210C-01 dual sensor gimbal payload intergrated laser rangefinder and laser irradation functions,widly use in marine surveilliance.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | MWIR(cooled) |
| Wavelength | 3~5μm | |
| Resolution | 640x512 | |
| Pixel | 15um | |
| NETD | 25mk | |
| Focus length | 40mm~200mm/F4.5,continuous zoom | |
| FOV | 13.75ºX11°～2.75º×2.2º | |
| Distance | PEOPLE:Detection 3km;Recognition 1km VEHICLE:Detection 15km;Recognition 6km |
| Laser rangefinder and laser irradiation | Wavelength | 1064nm |
| Laser energy | 25mJ | |
| Performance | ||
| Ranging distance | ≥5Km | |
| Ranging accuracy | ±2m |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥60°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HDSDIx1 | ||||
