Gyro High Axis Stabilization Laser Ranging ISR Payload With Changable Modes

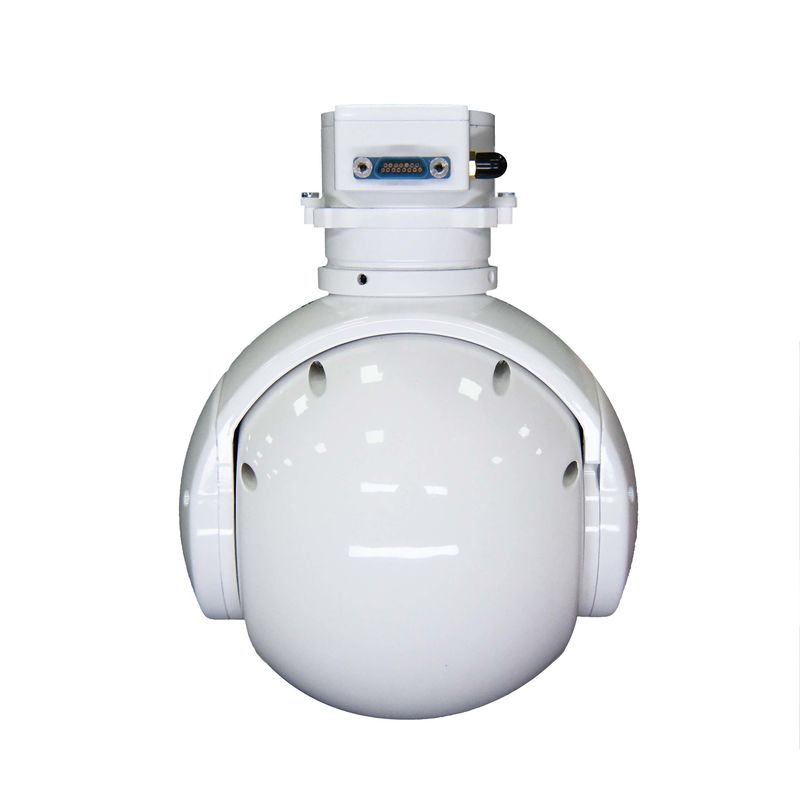

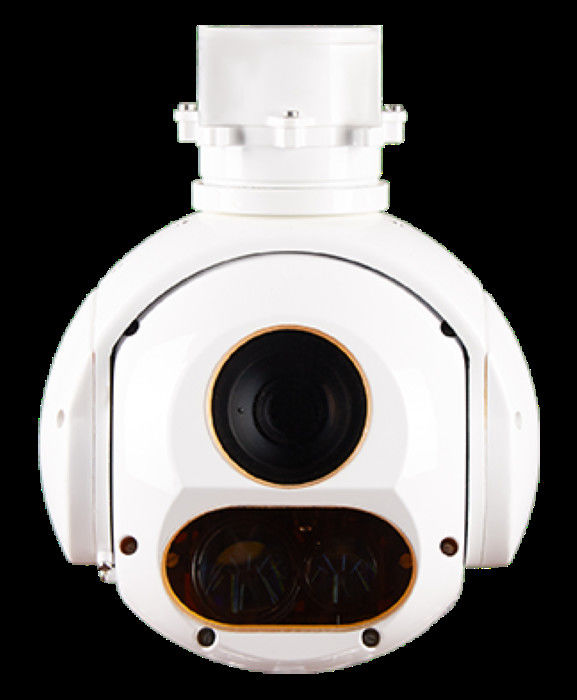

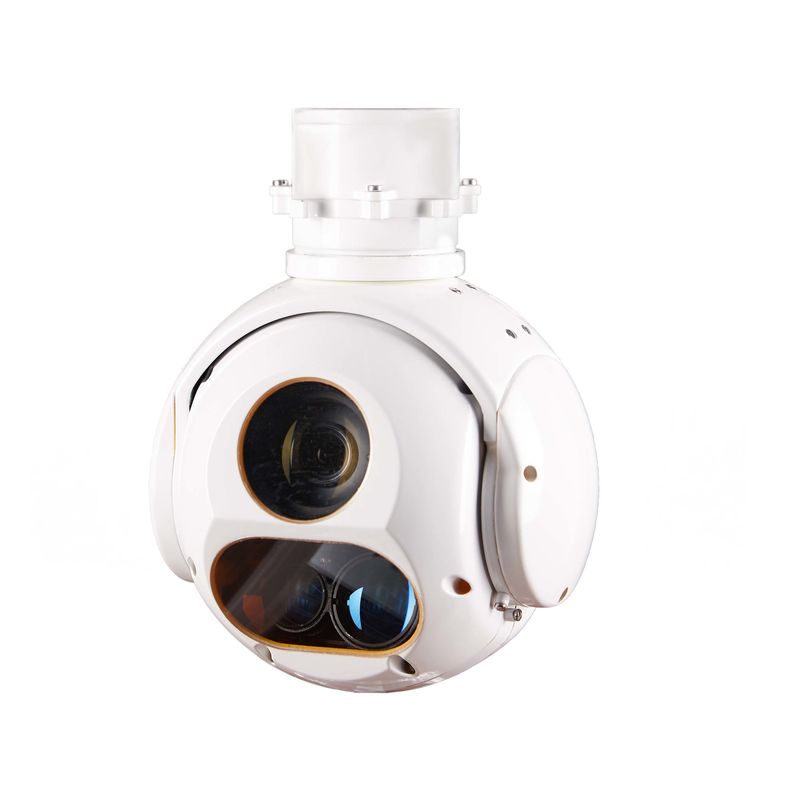

TS-01A is a kind of two- axis gyro stabilized gimbal camera which integrated 30X EO sensor and 905nm 1kilometer laser rangefingder. The imaging process is stable even at 30x optical zoom and 2X digital zoom. With laser randefinder, the object will be checked in distance by lrf antomatically. It also supports coodinate calculation. Alluminum alloy hosing is ideal for light weight devices, and meanwhile it keeps perfectly anti-interference and cooling function.
Functions
1. Provide the visible video and image for detection area
2. High precision visual axis stabilization
3. Capability of detection and recognition for ground target
4. Support searching, tracking, locking, guiding, etc working modes
5. With characters overlay, custom and display
6. Self - check and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| Laser rangefinder | Wavelength | 905nm |
| Performance | 3m~1km(3km optional) | |
| Ranging distance | 3~1000m | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1 | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
