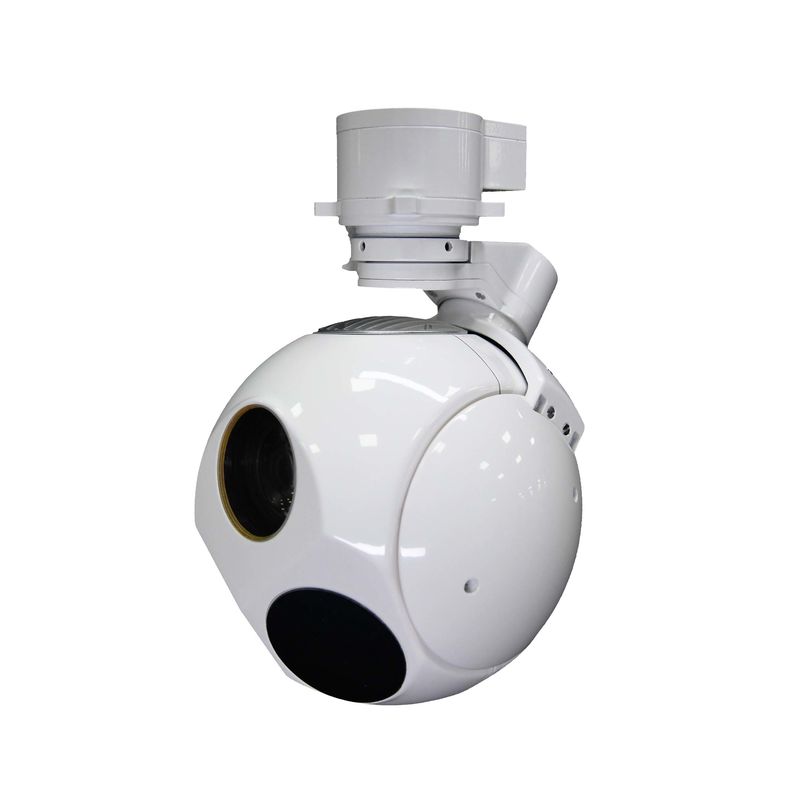

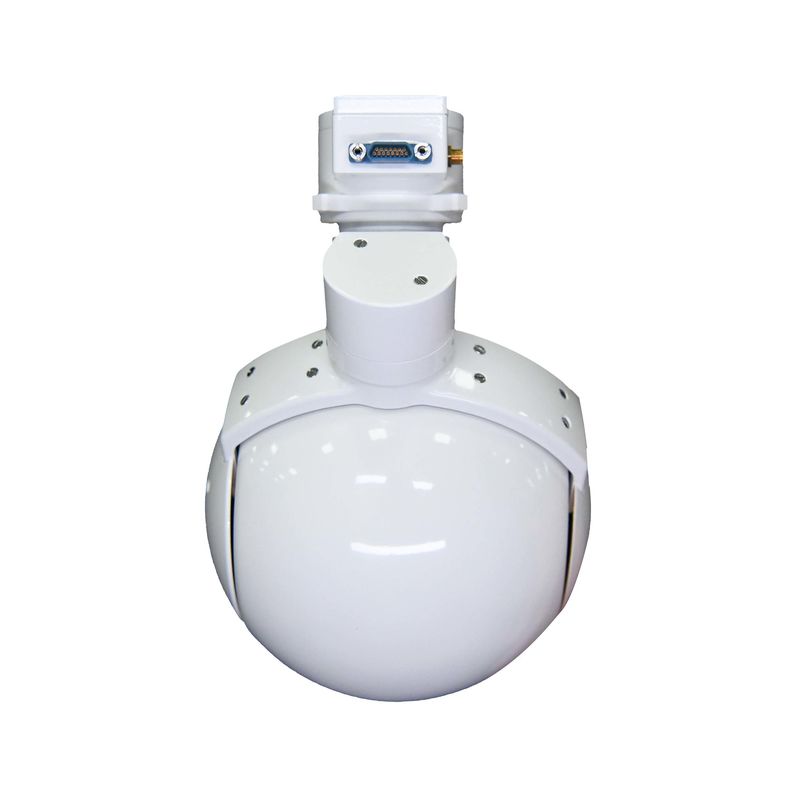

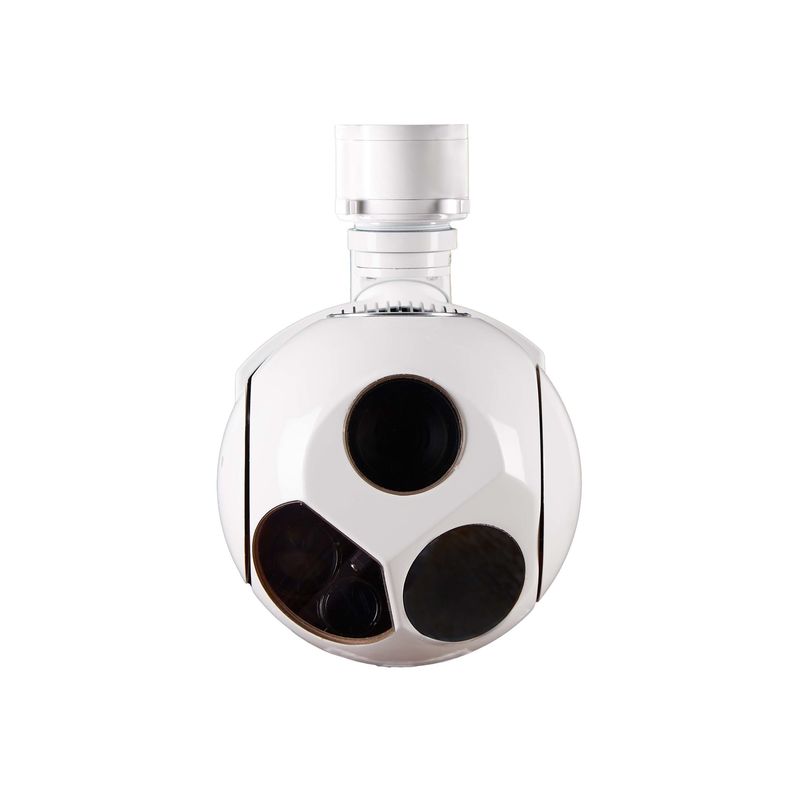

30X HD 3Axis Photoelectric UAV Gimbal Camera With Laser Rangefinder
TS130CT-01 is three- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in 30X HD zoom camera and longwave infrared module(LWIR uncooled) and laser rangefinder, mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc, meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 25mm/F1.0 | |
| FOV | 17.4º×14º | |
| Distance | PEOPLE:Detection 0.7km; Recognition 0.22km VEHICLE:Detection 4.2km; Recognition 1km |
| Laser rangefinder | Wavelength | 905nm/1535nm |
| Performance | ||
| Ranging distance | 1.5km(3km optional) | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤200μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x2(TTL optional) | |||
| Video output | HD-SDI x1 | ||||
Mechanical Drawing
Cautions
a) Don’t touch the detector window with your hands or other objects
b) Don’t plug or remove the connector without disconnecting the power supply.
c) Connect power supplies and signals according to the interface definition to prevent device damage
d) Don’t disassemble the equipment. If there is any fault, please contact HONPHO for professional maintenance
