Electro Optical Gimbal Systems And Pods For Air Based Applications

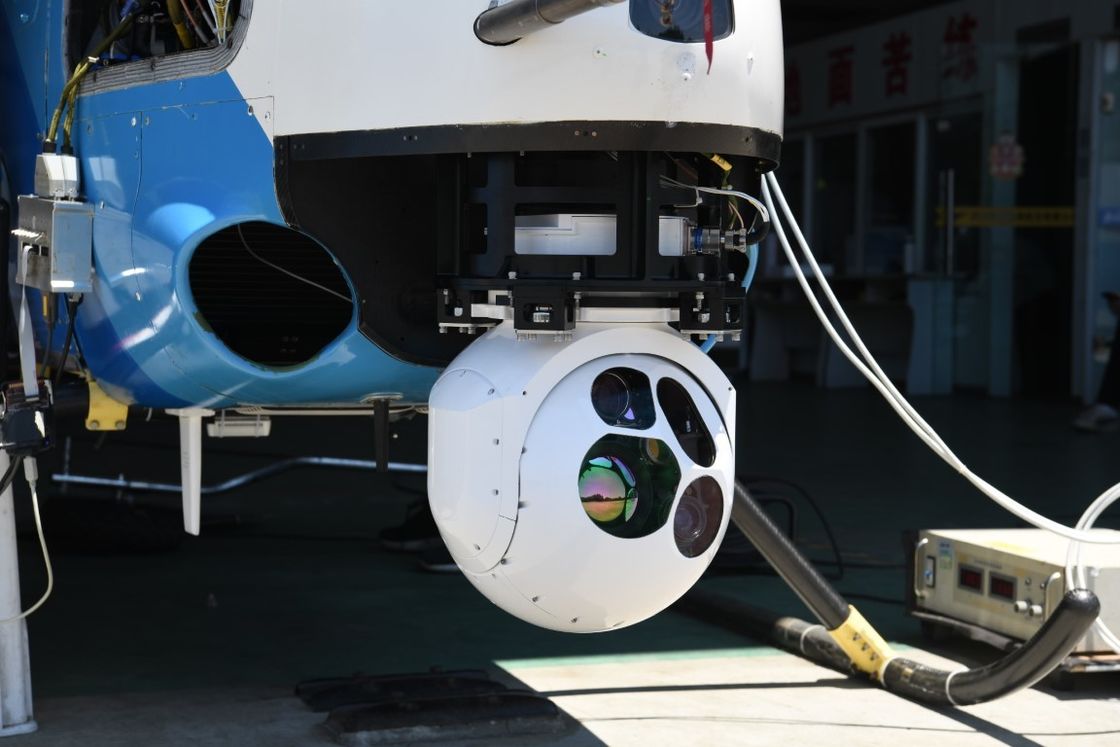

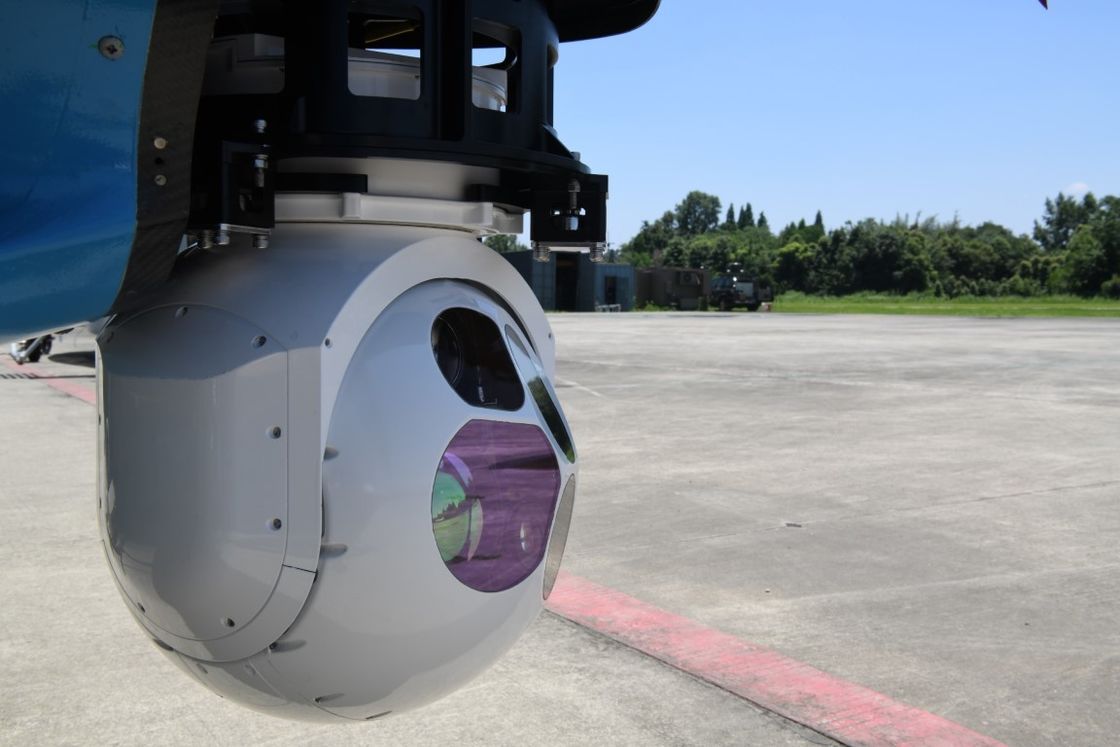

TS20 with 1080p visible zoom module,640x512 MVIR,NIR,and 8Km 1064nm laser rangefinder.Mutiple sensor 20kg electro-optical reconnaissance surveillance and targeting system. Its high-performance reconnaissance, surveillance electro optical tracking system that has been equipping the country’s drones. Provide laser instructions for laser-guied weapon and support user-defined laser precise frequency codes.
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging and laser irradiation
8. Support manual tracking, geographic tracking, automatic tracking and search tracking of the target
9. Support target laser ranging,provide the real-time angular of line of light,angular speed and range information to the mission system
10. Provide laser instructions for laser-guied weapon and support user-defined laser precise frequency codes
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |
| Resolution | 1080P | ||
| Focal length | |||
| FOV | 54°～1.9° | ||
| Video output | |||
| Distance | |||
| IR sensor | IR Type | MWIR(Zoom) | NIR(Fixed) |
| Wavelength | 3.7~4.8μm | 0.7um~0.9um | |
| Resolution | 640x512 | 1080p | |
| Pixel | 15um | 3.45μm | |
| NETD | |||
| Focus length | 5-330mm/F4.0； | 180mm/F4.3 | |
| FOV | 35.5°x28.7°~1.8°x1.5° | 2.0°x1.2° | |
| Distance | Detection distance: ≥8km; Identification distance: ≥5km |
Detection distance: ≥9km; Identification distance: ≥6km |
|
| Laser rangefinder | Wavelength | 1064nm | |
| Laser energy | ≥50mJ | ||
| Performance | Range: 300m~8km; Accuracy: ±5m | ||
| Ranging distance | 300m~8km | ||
| Ranging accuracy | ±5 | ||
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+20º | |
| Angular accuracy: | |||
| Stablization accuracy | Line of sight stabilization accuracy≤35μrad (1σ) | ||
| Max.angular speed | ≥60°/s | ||
| Max. angular acceleration: | ≥60°/S | ||
| Interface | Communication interface |
RS422*1 (TTL optional) | |
| Video output | HD-SDI *2 | ||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
