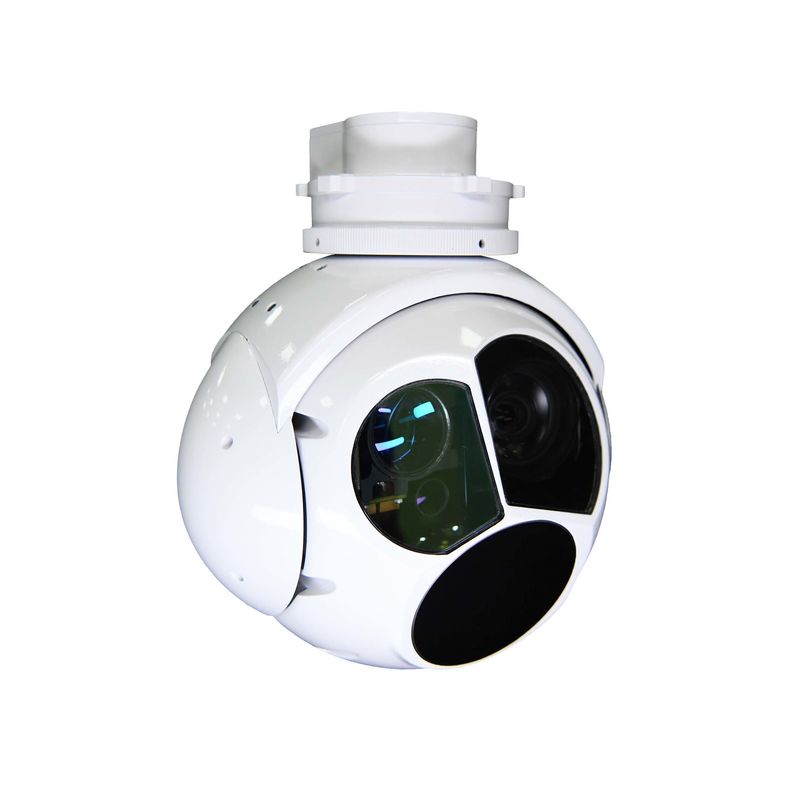

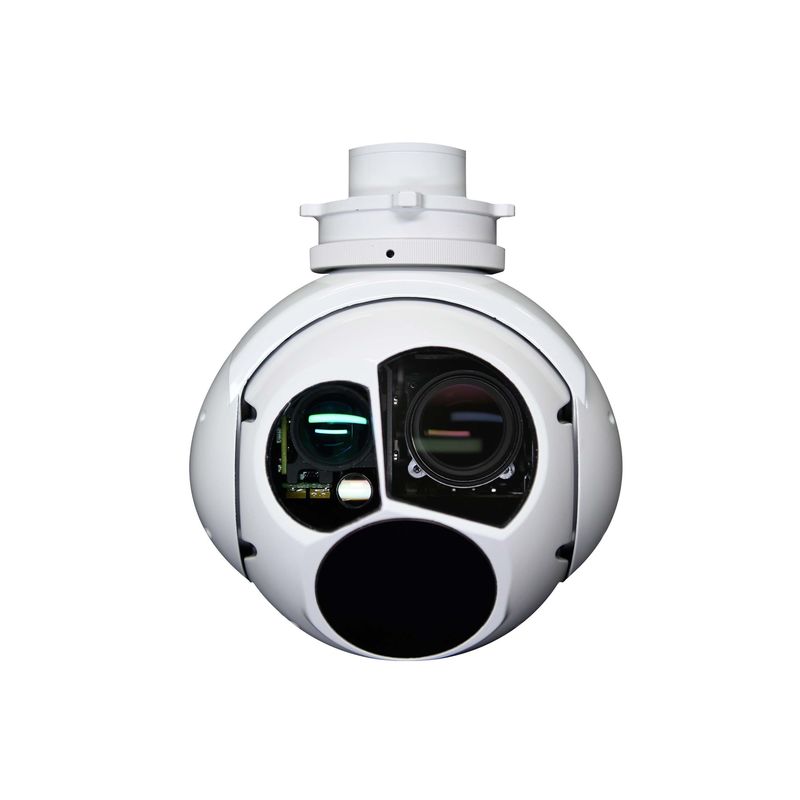

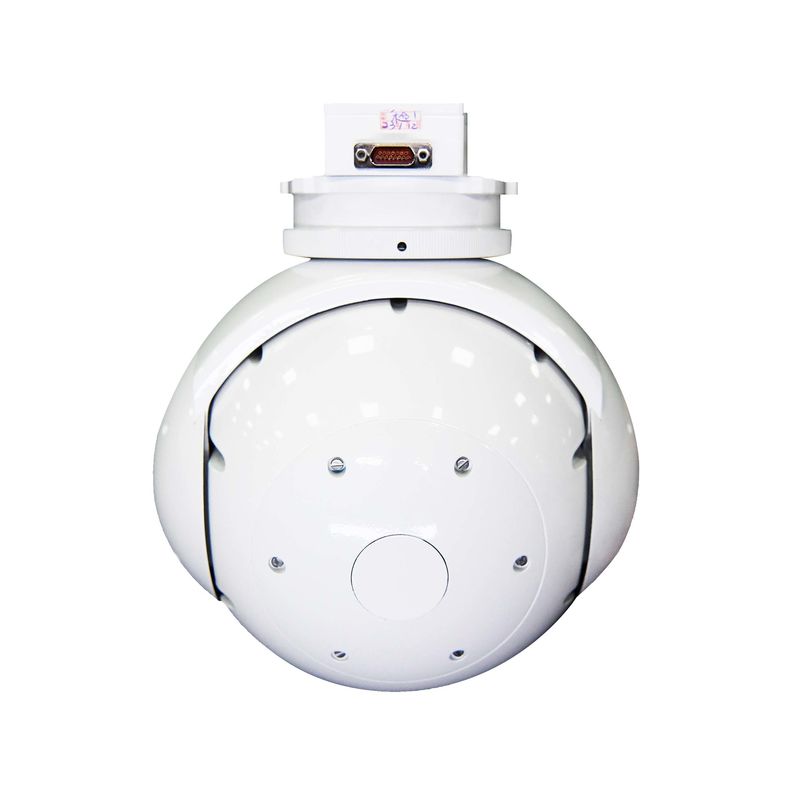

2KG 2Axis Dual Sensor UAV Gimbal Camera 360° continuous gyro platform
TS02-N is two- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in 30X HD zoom camera and longwave infrared module (LWIR uncooled) and laser rangefinder, mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc, meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
Functions
1. Provide the infrared video and image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion and laser ranging
8. Self-inspection and fault diagnosis
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm | |||
| Resolution | 1920x1080 | ||||
| Focal length | 4.3mm～129mm(30X) | ||||
| FOV | 63.7°～2.3° | ||||
| Video output | HD-SDI(1080P 30Hz) | ||||
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km | ||||
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 50mm/F1.0 | |
| FOV | 8.8º×7.0º | |
| Distance | PEOPLE:Detection 1.4km; Recognition 0.35km VEHICLE:Detection 8.4km; Recognition 2.1km |
| Laser rangefinder | Wavelength | 1535nm |
| Performance | ||
| Ranging distance | 4km | |
| Ranging accuracy | ±3 |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º | ||||
| Angular accuracy: | ≤2mrad | |||||
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) | |||||
| Max.angular speed | ≥50°/s | |||||
| Max. angular acceleration: | ≥90°/S | |||||
| Tracking Functions | Motion speed: | 30pixel/frame | ||||
| Target imaging contrast: | 8% | |||||
| Target imaging pixel(Mini) | 4x3 pixels | |||||
| Support | Anti -occlusion without loss of function | |||||
| Interface | Communication interface |
RS422 x1(TTL optional) | |||
| Video output | 100mb Ethernet | ||||
Mechanical Drawing
Storage
Storage The product shall be stored in a clean, ventilated, dry, rain-proof and dust-proof environment. Chemicals such as acids and alkalis or other volatile substances shall not be storage together with the product.
